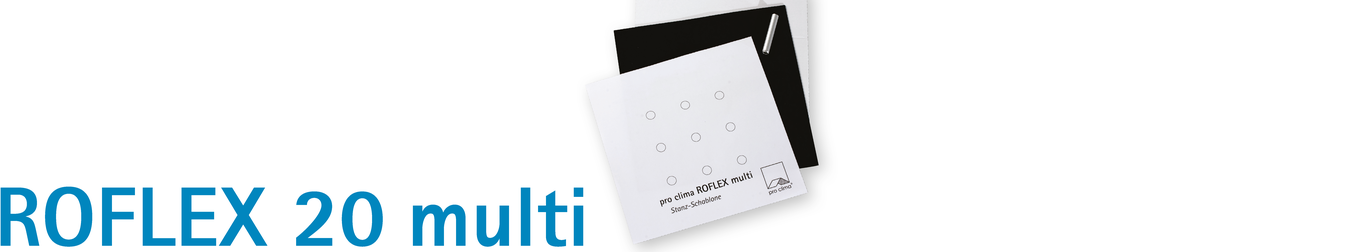

Multi conduit grommet for up to 9 conduits
- Complete set for up to 9 pipes
- Secure bond, quick and secure sealing, indoors or out
- High-quality EPDM, extremely flexible and elastic, no excess bushing
- Waterproof, also suitable for penetrations in façades and roof linings
- Pipes and cables can be still be pulled or pushed
- Lowest VOC rating in hazardous substance test
Conduit grommet made of strong and highly flexible EPDM for
simple, rapid and permanent airtight feed-throughs of up to 9 pipes through the airtight sealing layer or under the roof.
Complete assembly set for easy installation.
Stick with TESCON VANA (8 strips included in item no. 12936).
For between 1 and 9 pipes of 15 - 30 mm (.5”-1.5”) in diameter.
Before sticking, subsurfaces should be brushed off, wiped clean with a cloth or cleaned using compressed air.
Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on materials to be bonded. Subsurfaces must be sufficiently dry and have sufficient load-bearing capacity.
Permanent adhesion is achieved on all pro clima interior and exterior membranes, other vapour retarder and airtight membranes (e.g. those made of PE, PA, PP and aluminium) as well as other underlay/sarking and wall lining membranes (e.g. those made of PP and PET).
Adhesion and joints can be carried out on planed and painted wood, hard plastics and metal (e.g. pipes, windows etc.), hard wood-based panels (chipboard, OSB and plywood panels, MDF board and softwood fibre sub-roof panels).
Wood fibre sub-roof panels and smooth mineral subsurfaces require pre-treatment with TESCON PRIMER RP before bonding. Concrete or plaster subsurfaces must not be sandy or crumbling.
The best results in terms of structural stability are achieved on high-quality subsurfaces.
It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases.
Pretreatment with TESCON PRIMER RP is recommended in the case of subsurfaces with insufficient load-bearing capacity.
The bonds should not be subjected to tensile strain.
Press firmly to secure the adhesive tape. Ensure there is sufficient back-pressure.
Windproof, airtight or rainproof seals can only be achieved on vapour retarding membranes, roof lining membranes or façade membranes that have been laid without folds or creases.
Ventilate regularly to prevent build-up of excessive humidity and use a dryer if necessary.
