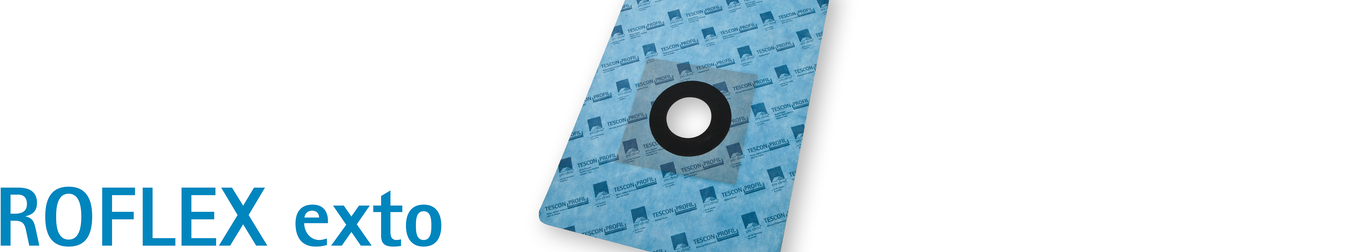

Vent pipe grommet for the windproof adhesion to pipes of vent tiles



Advantages

  • Permanently tight seal: windproof, waterproof, permeable
  • Precise positioning and easy to stick: the grommet extends laterally over the vent pipe tile
  • Reversible: The vent pipe can be easily pulled out of the grommet and reinserted
  • Centrally divided backing paper is easy to remove
  • High-quality sleeve: any water reaching the pipe is diverted to the sides
  • Excellent values in the hazardous substance test, has been tested according to the ISO 16000 evaluation


Application

Grommet for the windtight sealing of roof lining and sarking membranes and wood fibre boards (in conjunction with TESCON PRIMER) to pipes of vent tiles.
The size of ROFLEX exto makes it easy to bond to the roof sarking or roof lining under the positioned vent tile. If required, the grommet can be cut to flexibly adapt to the respective sealing situation. The adhesive patch is permeable. The impermeable EPDM section is reduced to the necessary extent.

Technical specs

  Material
Backing Spezial-Vlies aus PP mit EPDM
Adhesive waterproof SOLID adhesive
Release film centrally divided silicone-coated PE film
Attribute Value Norm
Colour light blue
Thickness about 1.2 mm ; 47 mils
Pipe diameter 100 - 120 mm ; 4” - 4.75”
Exposure time 6 months
Bonding requirement, non-aged/aged passed DIN 4108-11
Application temperature above -10 °C ; 14 °F
Temperature resistance permanent -40 °C to 90 °C ; -40 °F to 194 °F
Storage cool and dry
