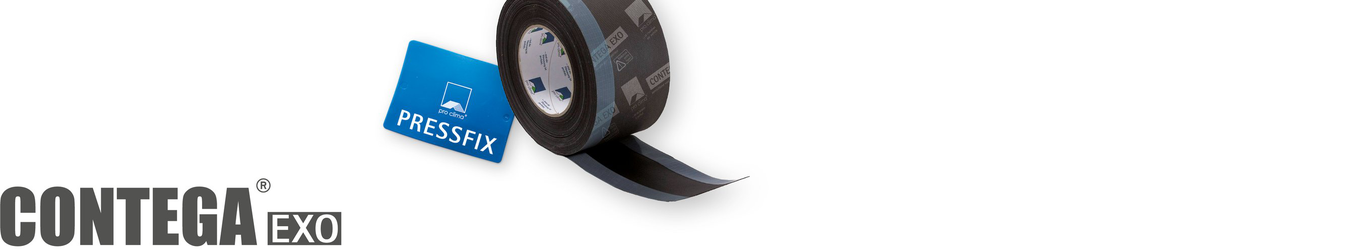

Exterior connection plastering tape
- Vapour permeable sealing of outdoor window and door joints
- Active moisture transport by means of the monolithic TEEE functional membrane
- Combines well with CONTEGA SL indoors
- Can be plastered over on the fleece side with three adhesive tapes it is very versatile in timber, masonry and concrete structures
For exterior wind-proof sealing of thermally insulated joints when installing windows and doors. In combination with CONTEGA SL also suitable for sealing joints in timber, masonry and concrete structures.
|Backing||double-layer special membrane made of PP fleece and TEEE functional film|
|Adhesive||special acrylate adhesive|
|sd-value||EN ISO 12572||0.05 m||EN ISO 12572|
|Vapor permeance||ASTM E 96||65.6 US perms||ASTM E 96|
|Exposure time||3 months|
|Water column||EN 20811||> 2 500 mm ; > 8' 2"||EN 20811|
|Resistance to driving rain||ift, MO-01/1:2007-01, Abs. 5||up to 600 Pa, surrounding||ift, MO-01/1:2007-01, Abs. 5|
|Requirement for bond strength, non-aged/aged||DIN 4108-11||passed||DIN 4108-11|
|Can be plastered over||yes|
|Application temperature||above -10 °C ; 14 °F|
|Temperature resistance||permanent -40 °C to 90 °C ; -40 °F to 194 °F|
|Storage||cool and dry|

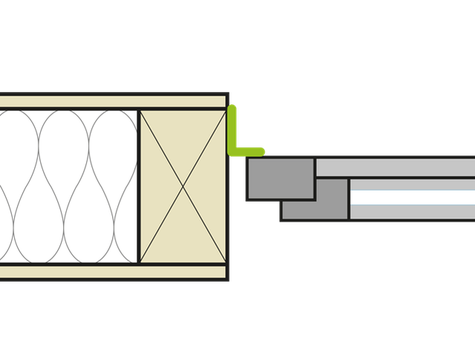

Verarbeitungshinweise 1. Holzrahmenbau
The bonds should not be subjected to tensile strain.
Press firmly to secure the adhesive tape. Ensure there is sufficient back-pressure.
Driving rainproof and windtight seals can only be achieved if this connection tape is laid without folds or creases and are uninterrupted.
Before sticking, subsurfaces should be brushed off, wiped clean with a cloth or cleaned using compressed air.
Bonding to frozen surfaces is not possible. The substrate material must be free of water-repellent substances (e.g. grease or silicone). Subsurfaces must be sufficiently dry and have sufficient load-bearing capacity.
Permanent adhesion is achieved on all pro clima exterior membranes and on other underlay/sarking and wall lining membranes (e.g. those made of PP and PET).
Adhesion can be carried out on planed and painted wood, hard plastics, hard wood-based panels (chipboard, OSB and plywood panels).
For bonding joints on masonry or concrete or on rough substrates, use ORCON F.
The best results in terms of structural stability are achieved on high-quality subsurfaces.
It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases.
Pretreatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient load-bearing capacity.
