CONTEGA EXO
Installation steps: 2. Timber frame structures

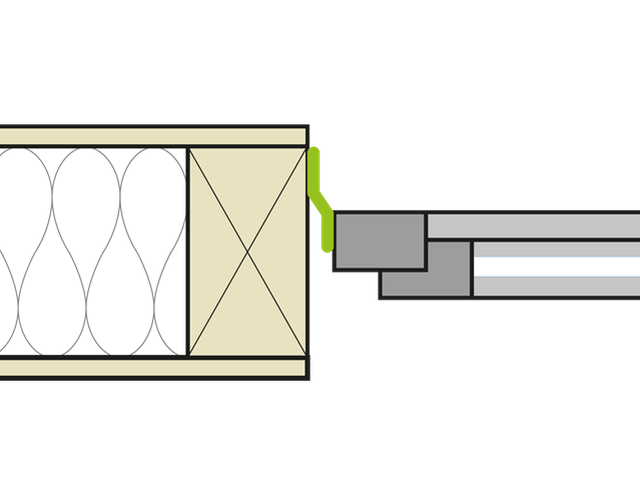

Schematic diagram
CONTEGA EXO has already been stuck to the side of the window frame – for example, by the window installation technician.
Schematic diagram
CONTEGA EXO has already been stuck to the side of the window frame – for example, by the window installation technician.

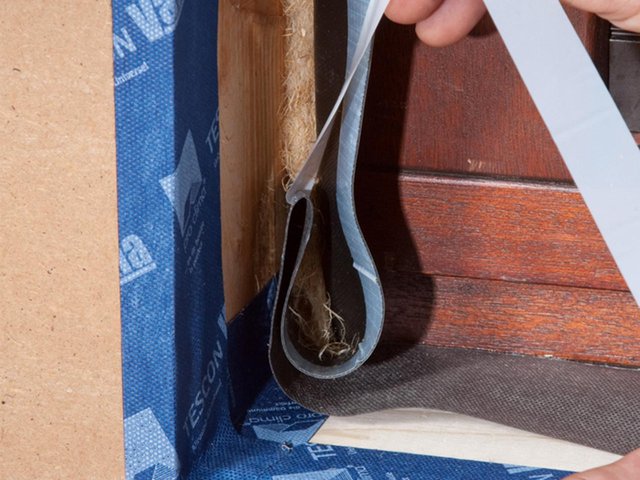

1. Preparation of corners
Remove the release film, fold the tape in the corner area and stick to one another. Stick the tape in place all around the reveal in a manner that is windtight and resistant to driving rain. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond. Ensure that there is sufficient resistance pressure.
1. Preparation of corners
Remove the release film, fold the tape in the corner area and stick to one another. Stick the tape in place all around the reveal in a manner that is windtight and resistant to driving rain. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond. Ensure that there is sufficient resistance pressure.

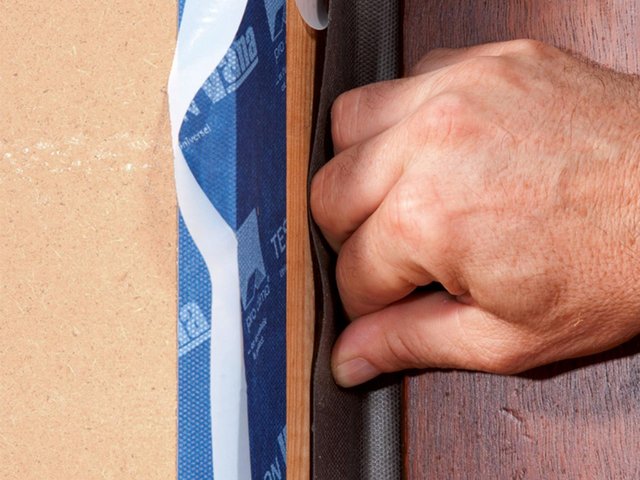

2. Stick to the reveal
Remove the release film from the smooth membrane side and stick the tape all around the reveal in a manner that is windtight and resistant to driving rain. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond. Ensure that there is sufficient resistance pressure.
2. Stick to the reveal
Remove the release film from the smooth membrane side and stick the tape all around the reveal in a manner that is windtight and resistant to driving rain. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond. Ensure that there is sufficient resistance pressure.

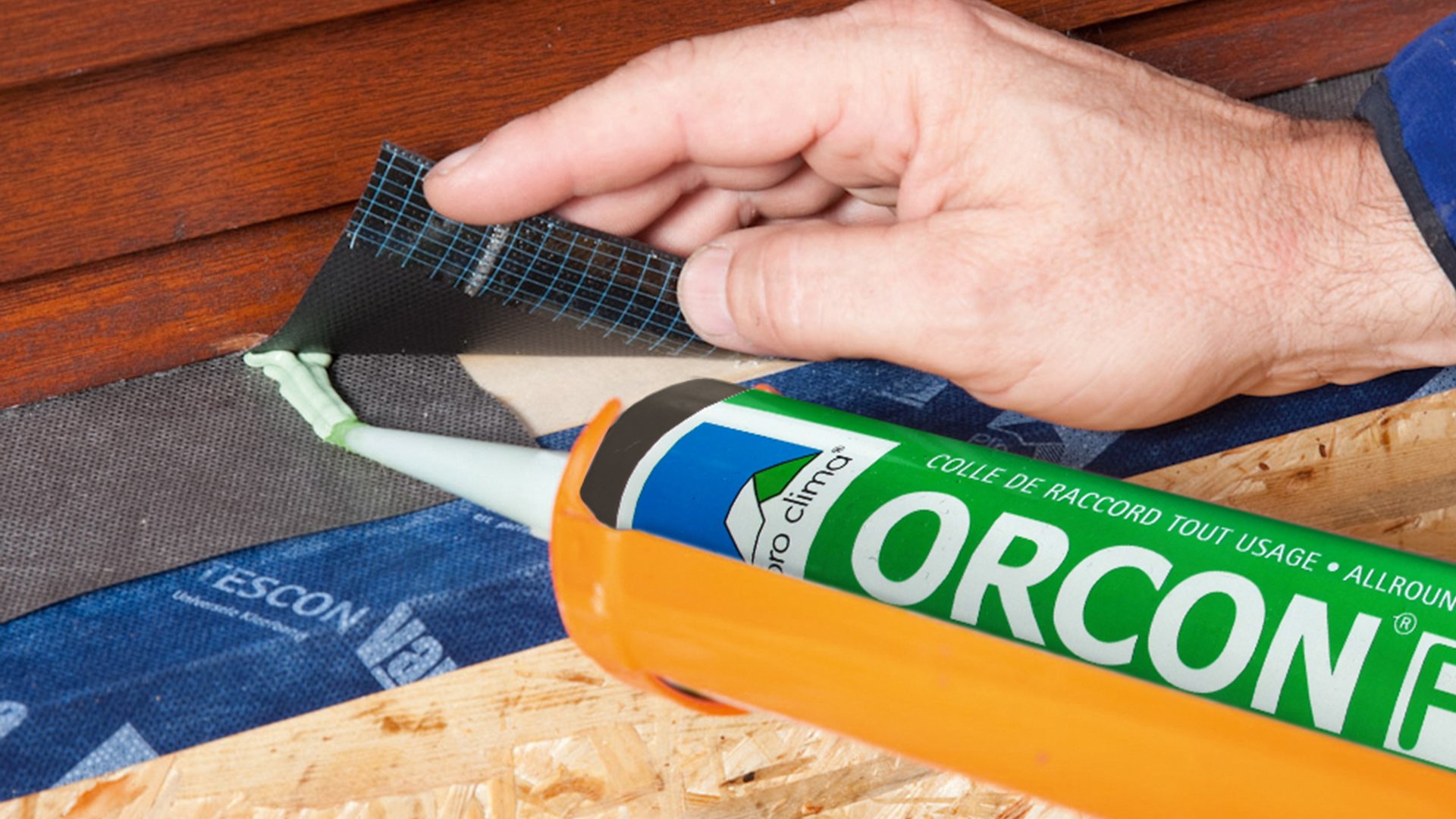

3. Stick the ends
Apply an approx. 5 mm (3/16") thick line of ORCON F adhesive sealant between the overlapping ends of the tape. Place the tape onto the adhesive. Do not press the adhesive completely flat so as to allow for relative motion between components.
3. Stick the ends
Apply an approx. 5 mm (3/16") thick line of ORCON F adhesive sealant between the overlapping ends of the tape. Place the tape onto the adhesive. Do not press the adhesive completely flat so as to allow for relative motion between components.
