CONTEGA SOLIDO SL-D
Installation steps: 1. Before the window is installed

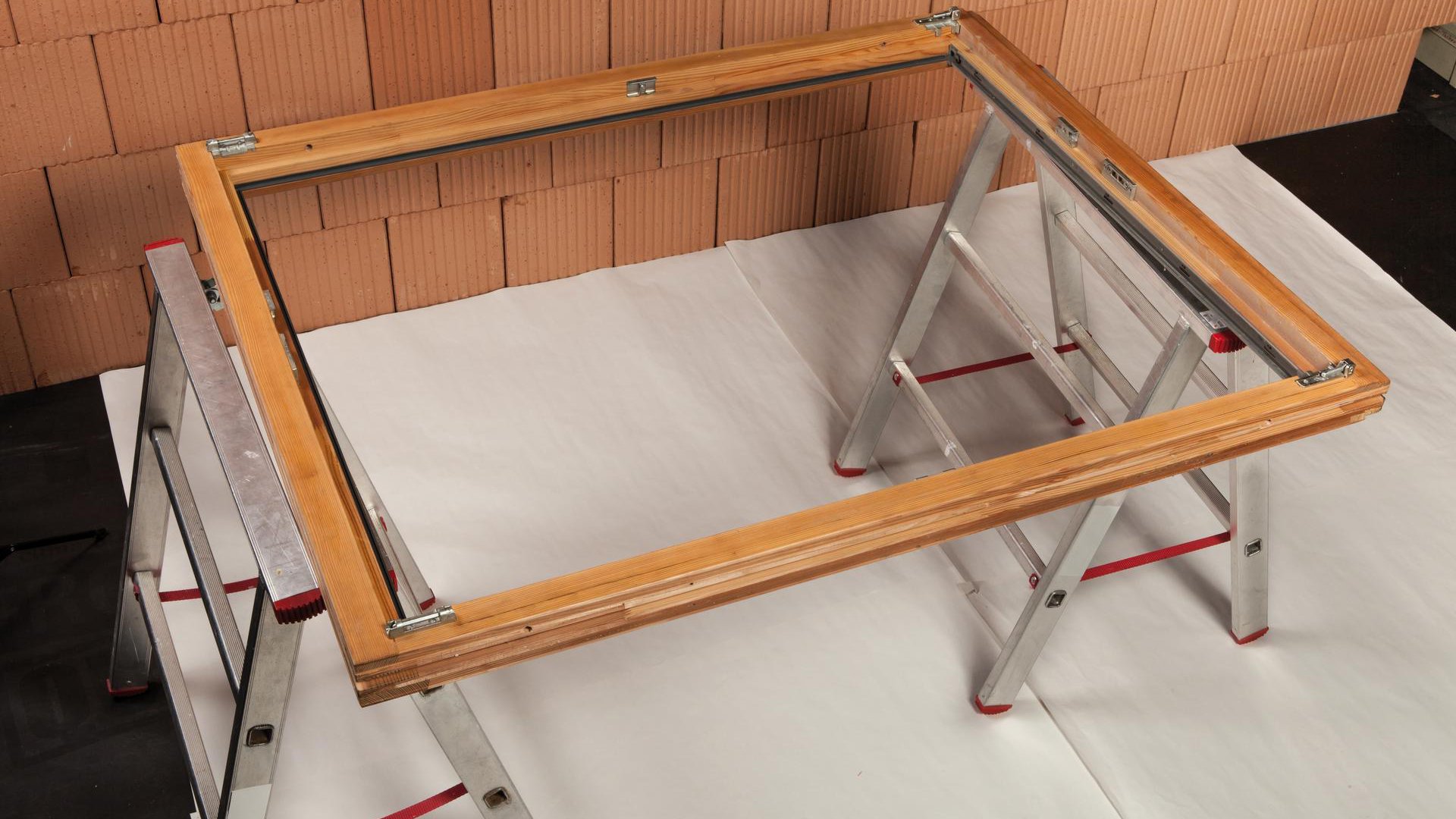

1. Masonry or timber structure
CONTEGA SOLIDO SL-D is to be applied before the window is installed. The frame is laid out flat with the interior side facing up.
1. Masonry or timber structure
CONTEGA SOLIDO SL-D is to be applied before the window is installed. The frame is laid out flat with the interior side facing up.

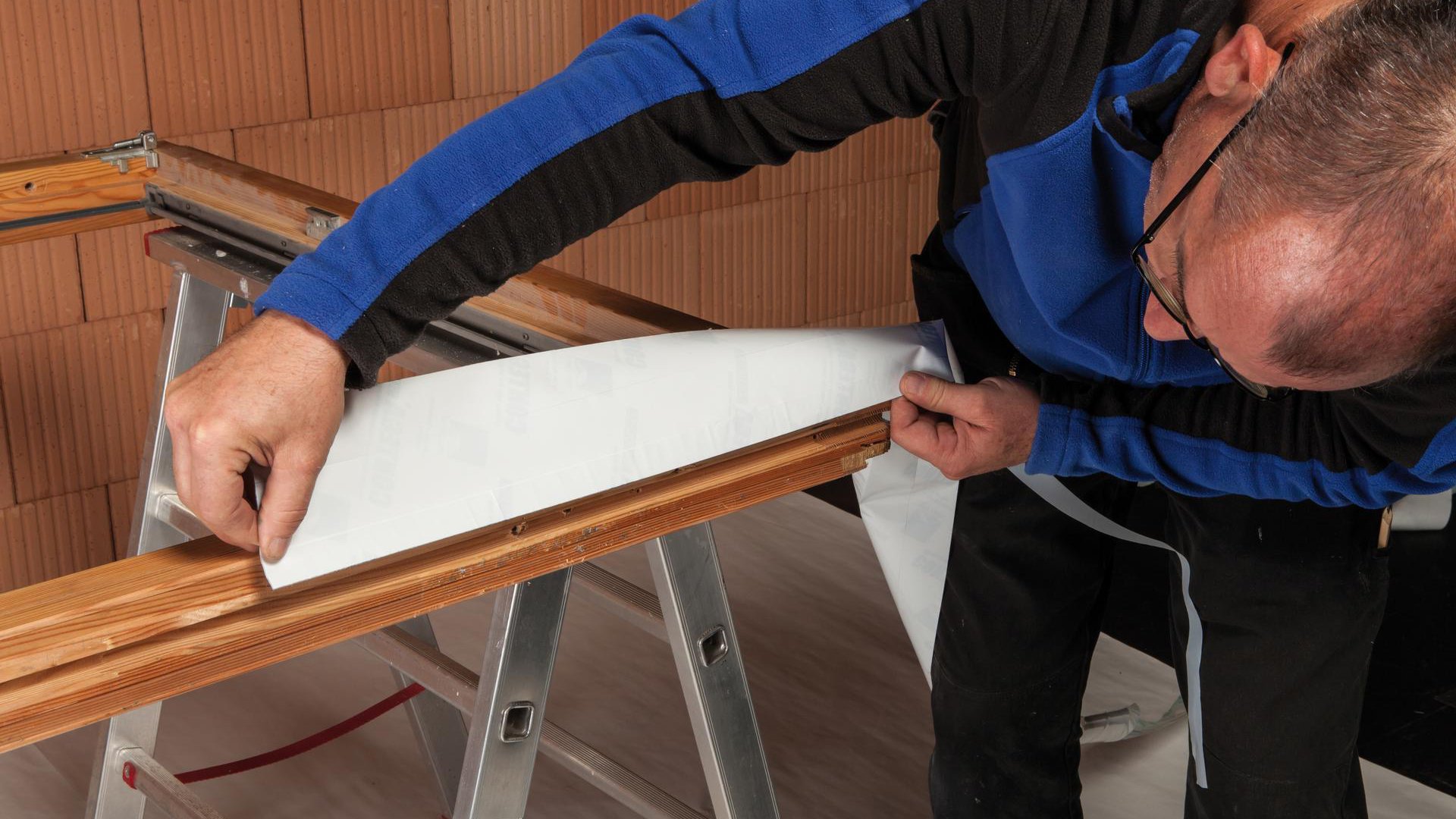

2. Stick to the side of the frame
Remove the single release film strip on the printed side, position the tape on the side of the frame and then gradually stick in place. The printed side of the tape must be facing the window (upwards) here. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond.
2. Stick to the side of the frame
Remove the single release film strip on the printed side, position the tape on the side of the frame and then gradually stick in place. The printed side of the tape must be facing the window (upwards) here. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond.

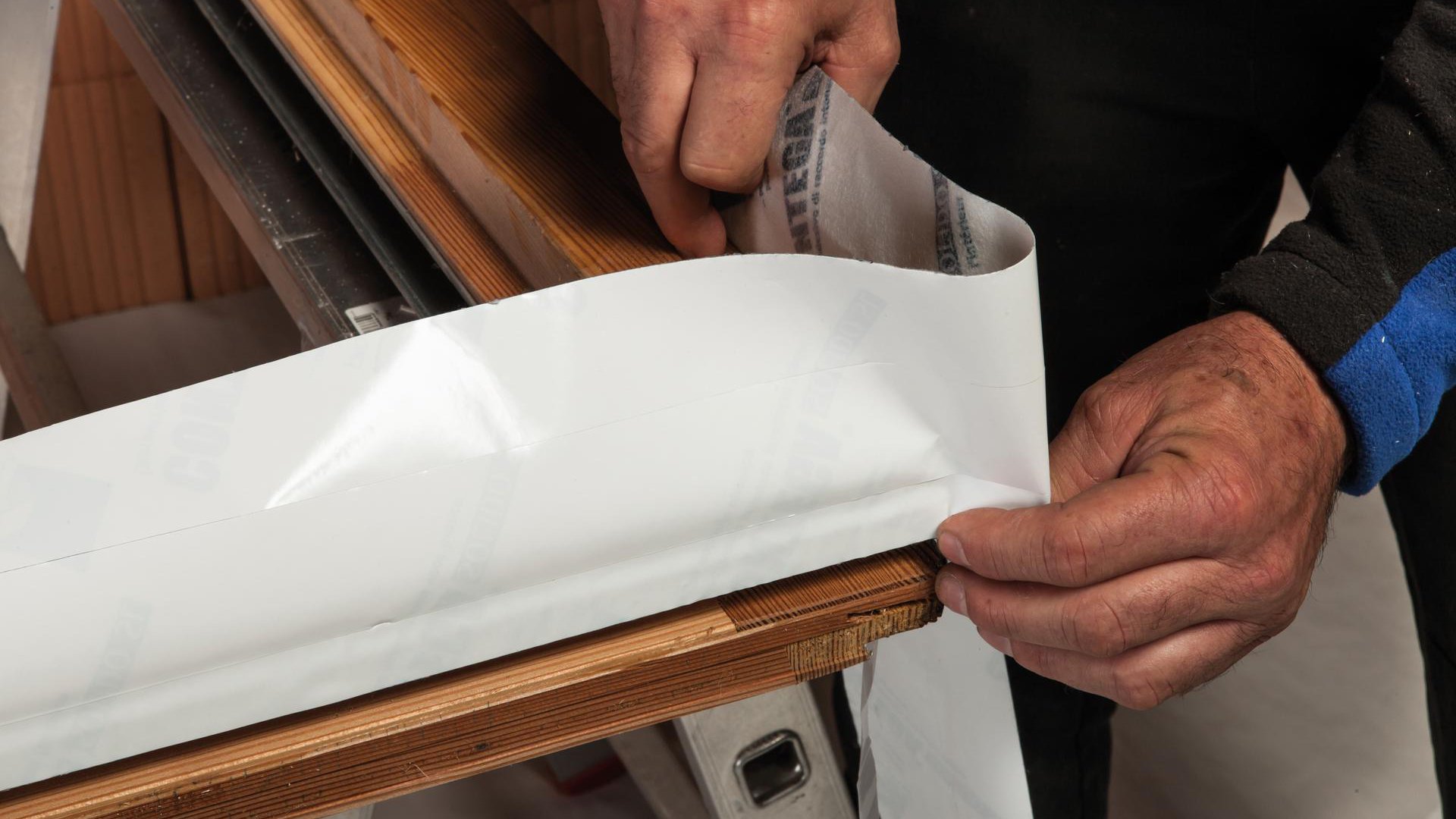

3. Preparation of corners
Allow CONTEGA SOLIDO SL-D to protrude by about 2 cm in the corner area (length of the corner diagonal of the joint) and stick it together to form a corner fold.
3. Preparation of corners
Allow CONTEGA SOLIDO SL-D to protrude by about 2 cm in the corner area (length of the corner diagonal of the joint) and stick it together to form a corner fold.

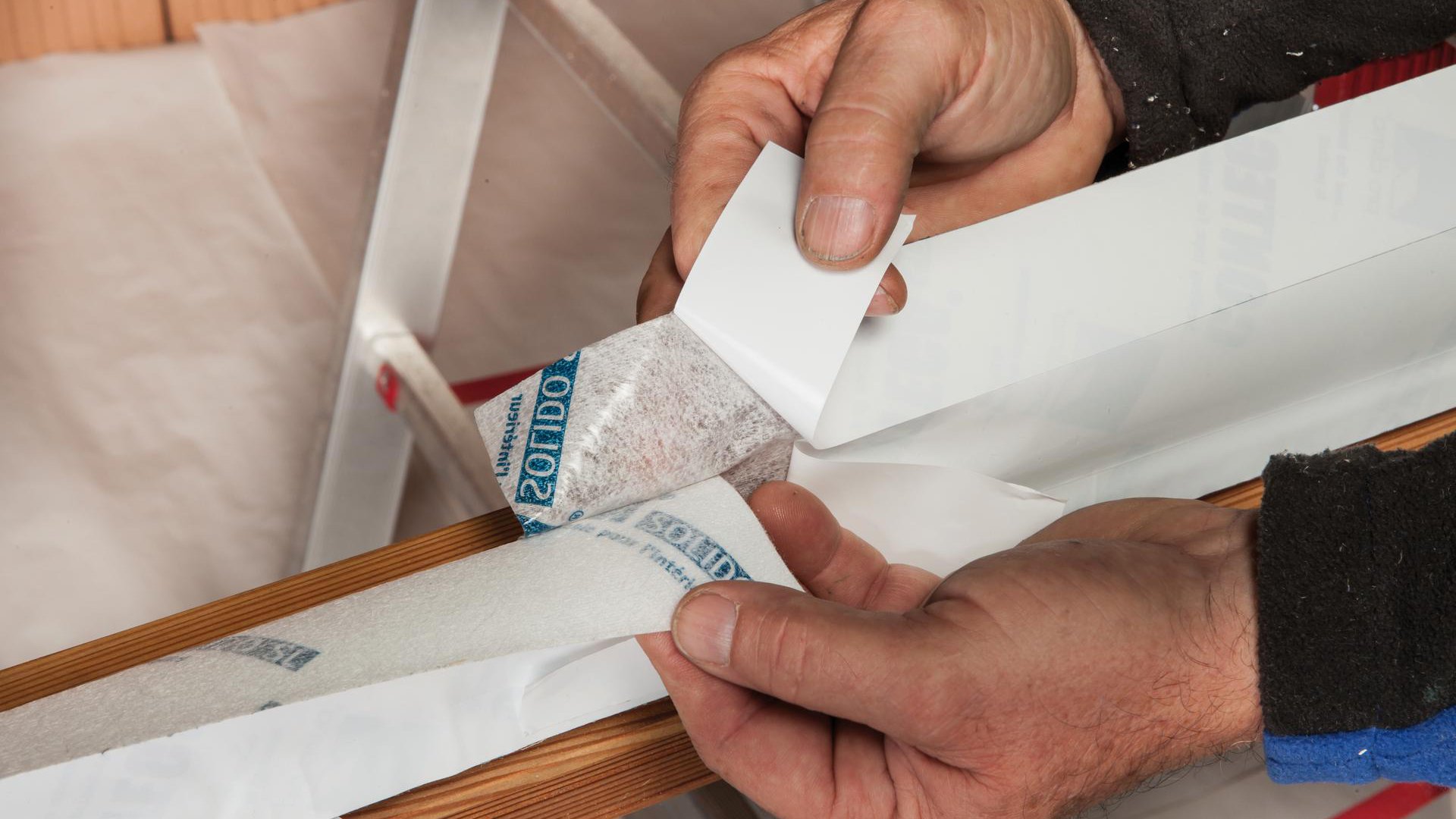

4. Stick the tape all around the window frame
Stick the tape to the side of the frame all around. When finished, cut the tape, allowing approx. 5 cm of an overlap. Remove the release film from the start of the tape that is already fastened in place in the overlap area, and stick the end of the tape in place. Ensure that there is uninterrupted airtightness when sticking the tapes together.
4. Stick the tape all around the window frame
Stick the tape to the side of the frame all around. When finished, cut the tape, allowing approx. 5 cm of an overlap. Remove the release film from the start of the tape that is already fastened in place in the overlap area, and stick the end of the tape in place. Ensure that there is uninterrupted airtightness when sticking the tapes together.

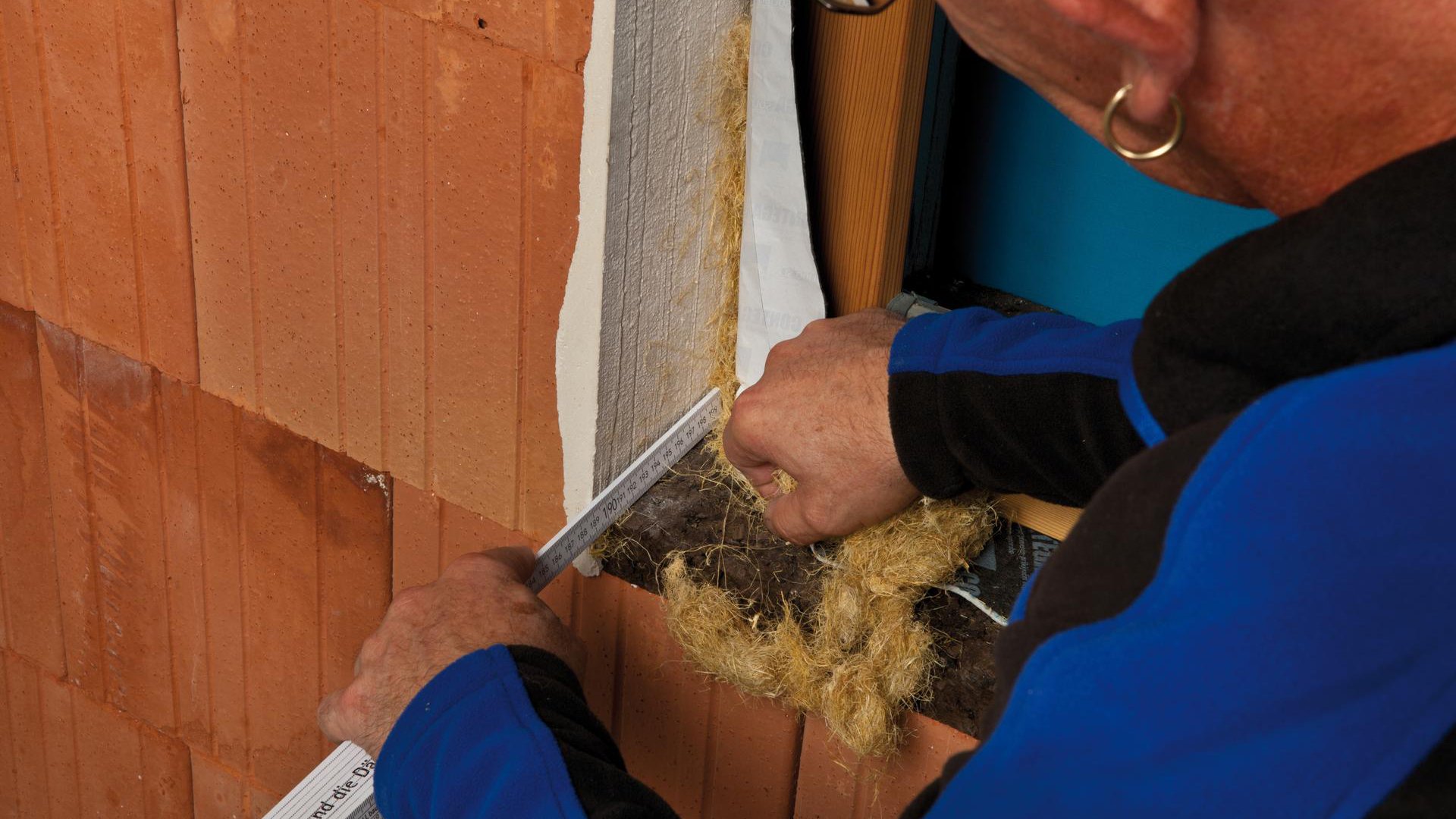

5. Install the window and insulate the joint
Fold in the CONTEGA SOLIDO SL-D and install the window properly. Use a suitable fastening system. Fill in the joint with a suitable approved insulation material, leaving no cavities.
5. Install the window and insulate the joint
Fold in the CONTEGA SOLIDO SL-D and install the window properly. Use a suitable fastening system. Fill in the joint with a suitable approved insulation material, leaving no cavities.

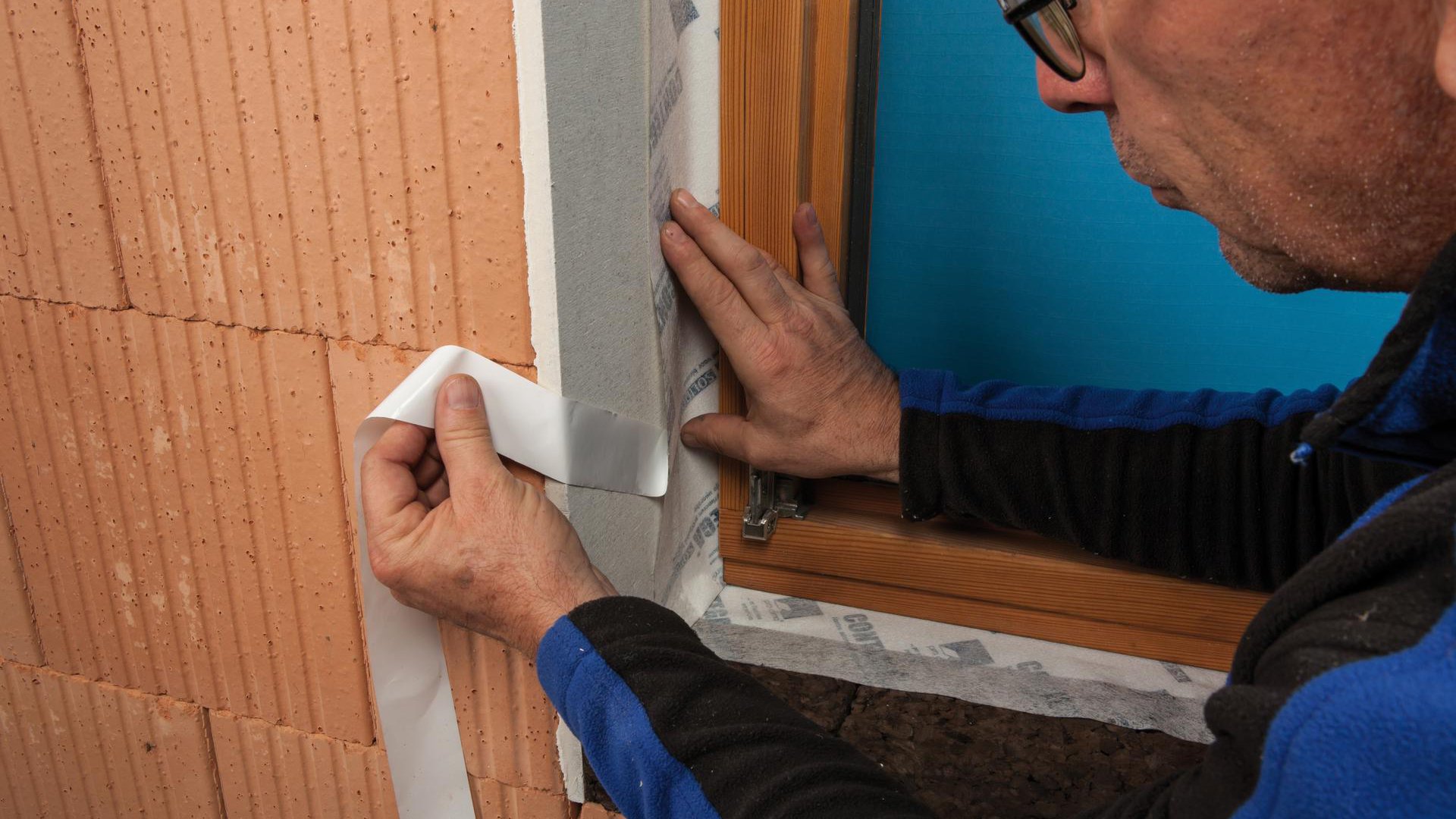

6. Stick onto the reveal and rub into place
Remove the release film strip on the membrane side (unprinted side) and gradually stick the tape in place on the reveal. Leave slack for expansion so as to allow for relative motion between components. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond.
6. Stick onto the reveal and rub into place
Remove the release film strip on the membrane side (unprinted side) and gradually stick the tape in place on the reveal. Leave slack for expansion so as to allow for relative motion between components. Rub firmly using the pro clima PRESSFIX application tool to secure the adhesive bond.
