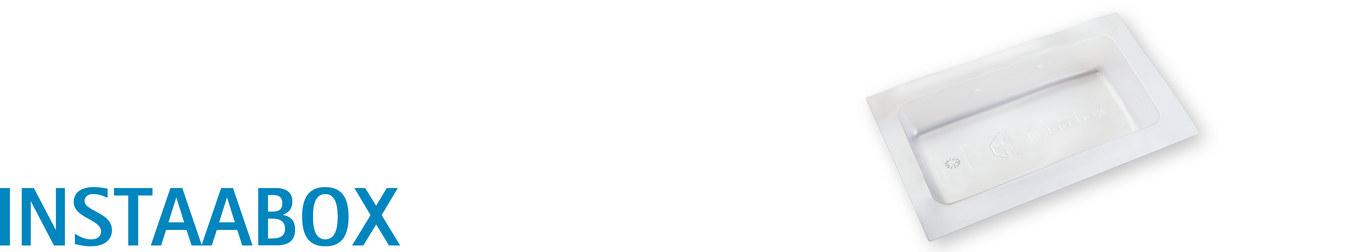

Installation box



Advantages

  • Airtight installation of junction boxes without dry lining in accordance with the requirements of DIN 4108-7, SIA 180 and OENORM B8110-2
  • Provides space for up to three junction boxes
  • Can be extended at will by cutting and sticking together again
  • For cables and conduits up to 20 mm (.79") in diameter
  • Lowest VOC rating in hazardous substance test


Application

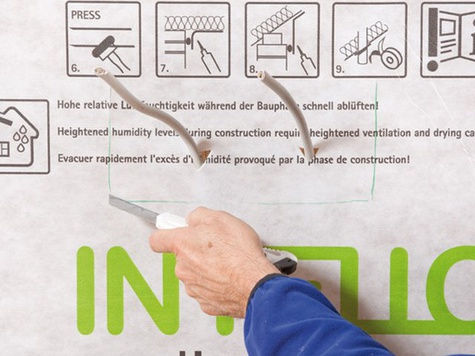

For structures without dry lining, the INSTAABOX can create space for junction boxes and the like. It is attached and sealed so that it is airtight to the existing vapour retarding and airtightness layer.
It complies with the requirements of DIN 4108-7, SIA 180 and OENORM B 8110-2 with regard to airtightness when using conventional junction boxes. The INSTAABOX can be used for both internal and external walls.

The INSTAABOX is oversized to prevent the airtight sealing layer being damaged if holes need to be drilled for the junction boxes.

  Material
Material polyethylene, flexible and extensible
Attribute Value Norm
Colour translucent
Length / width installation space/cavern 260 mm / 130 mm ; 10.24" / 5.12"
Length / width over all 320 mm / 190 mm ; 12.6" / 7.48"
Depth 55 mm ; 2.17"
Cable diameter max. 20 mm ; 0.79"
sd-value > 10 m EN 1931
g-value > 50 MNs/g
Vapor permeance < 0.33 US perms ASTM E 96
Reaction to fire E EN 13501-1
Temperature resistance permanent -10 °C to 80 °C ; 14 °F to 176 °F
Storage cool and dry

General conditions

The bonds should not be subjected to tensile strain.
When the vapour control membrane is sealed, the weight of the insulating material must be borne by lathing. Adhesion should be supported by additional laths, if necessary.
Press firmly to secure the adhesive tapes in place. Ensure that there is sufficient resistance pressure.
Airtight seals can only be achieved on vapour control membranes that have been laid without folds or creases.
Ventilate continuously and systematically to prevent build-up of excessive humidity; use a dryer if necessary.

Substrate

The INSTAABOX can be used on all common airtight substrates used in construction. Recommendations on suitable sealants for connecting it to the airtight sealing layer (e.g. vapour retarder, wood-based panels or mineral substrate) is given in the pro clima application matrix.

Further information can be found in the technical data sheets provided with the sealant.
