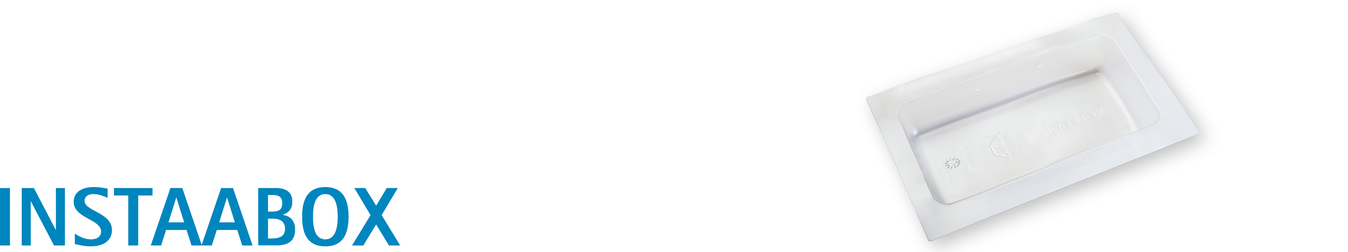

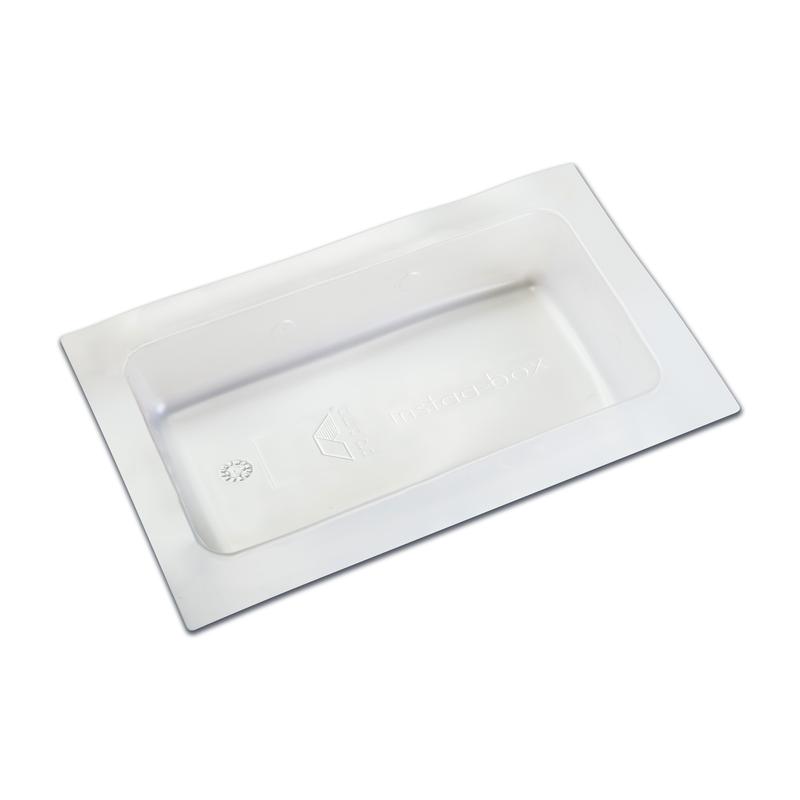

Installation box

INSTAABOX

Advantages

  • For cables and conduits up to 20 mm in diameter
  • Construction in adherence with standards: for airtight bonding in accordance with DIN 4108-7, SIA 180 and RT 2012
  • Provides space for up to three junction boxes
  • Can be extended at will by cutting and sticking together again
  • Excellent values in the hazardous substance test, has been tested according to the ISO 16000 evaluation scheme

Areas of Application

For structures without dry lining, the INSTAABOX can create space for junction boxes and the like. It is attached and sealed so that it is airtight to the existing vapour retarding and airtightness layer.
It complies with the requirements of DIN 4108-7, SIA 180 and RT 2012 with regard to airtightness when using conventional junction boxes. The INSTAABOX can be used for both internal and external walls.

The INSTAABOX is oversized to prevent the airtight sealing layer being damaged if holes need to be drilled for the junction boxes.
