Photo gallery, Installation
1. Pull the grommet over the pipe and align it
Select a grommet to match the diameter of the pipe, pull it over the pipe, guide it as far as the subsurface and align it.
2. Stick the grommet and rub it firmly in place
Stick the grommet to the subsurface and rub it firmly in place.
Ensure that there is sufficient resistance pressure.
This work can be carried out more efficiently and in a manner that is kinder to your hands by using the pro clima PRESSFIX application tool.

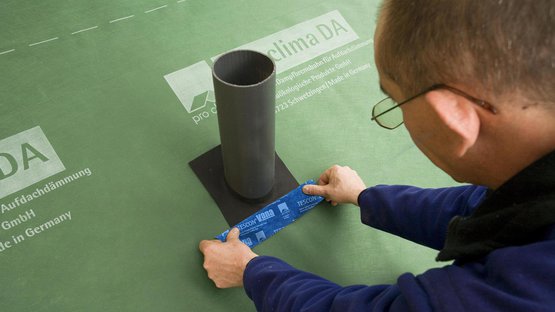

3. Also for exterior use
All ROFLEX grommets can also be used in exterior applications, e.g. for external roof insulation.
In this case, it is important to use TESCON VANA system adhesive tapes with waterproof SOLID adhesive.
4. Conduit grommet
ROFLEX 20 is a conduit grommet made from EPDM and an integrated adhesive substrate, which is suitable for pipes with a diameter of 15–30 mm (9/16"-1 3/16").
Pull the grommet over the conduit, gradually remove the release film and then stick the grommet to the subsurface.
Rub the grommet firmly in place.
5. Grommet for several conduits
Use of the ‘ROFLEX 20 multi’ grommet for multiple conduits is recommended if a number of conduits are to be reliably integrated into the airtightness layer.
