Photo gallery, Installation: 1. Timber construction
If the window has already been installed, CONTEGA EXO is stuck to the frame.
1. Remove the inner backing paper
Remove one of the backing paper strips on the membrane side (smooth side).

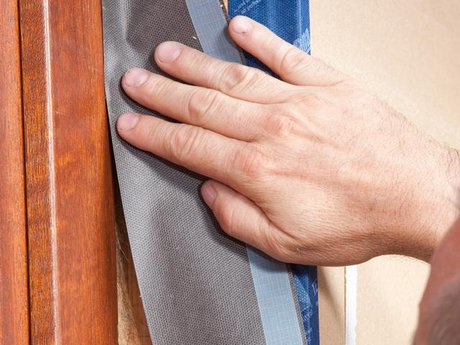

2. Stick to frame
Place the full width of the adhesive strip of the CONTEGA EXO onto the frame and stick the first soffit side.

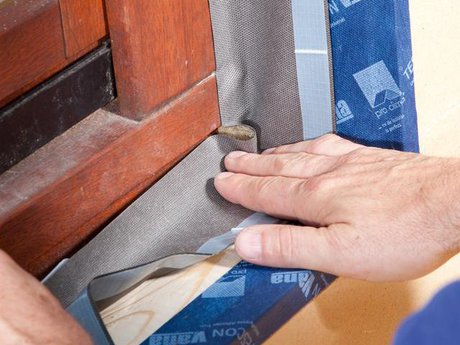

3. Formation of corner
Fold the tape in the corner area.
Ensure that there is uninterrupted windtightness at the window.
Then continue sticking around the rest of the frame.
When finished, cut the tape with approx. 5 cm of an overlap.

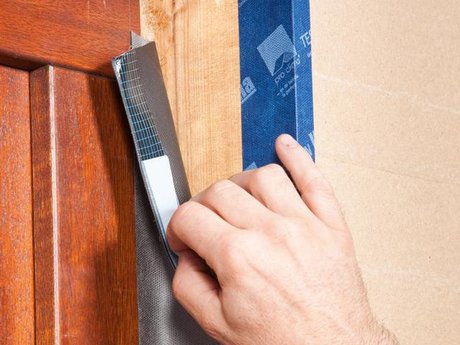

4. Stick to the soffit
Remove the second strip of backing paper from the smooth membrane side and stick the CONTEGA EXO all around the soffit.

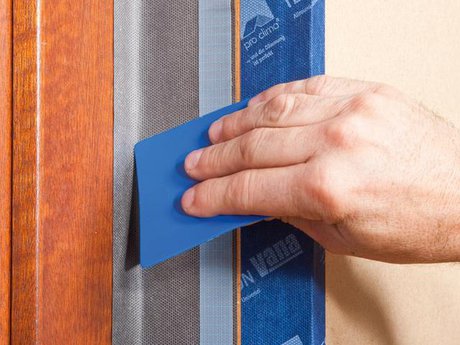

5. Press firmly to secure the CONTEGA EXO in place
Rub tape firmly into place using the pro clima PRESSFIX.

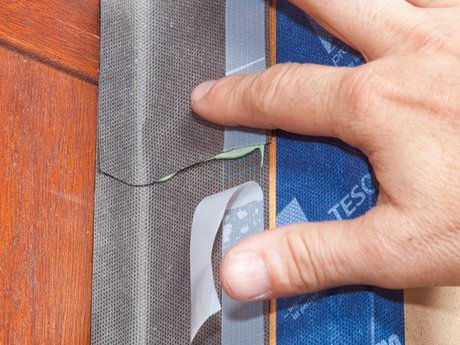

6. Stick the ends
Remove outer backing paper from the bottom tape.

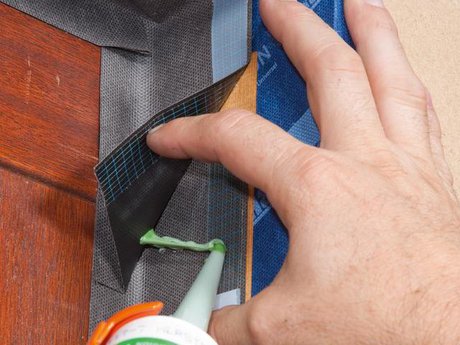

Apply a line (approx. 5 mm thick) of ORCON F joint adhesive between the overlapping ends of the tape.
Place the tape onto the adhesive.
7. Stick the ends
Do not press the adhesive completely flat so as to allow for relative motion between components.
