Photo gallery, Installation: 2. Timber construction
CONTEGA EXO has already been installed to the side of the window – for example, by the window installation.

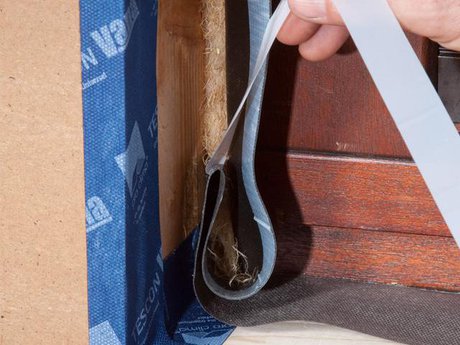

1. Formation of corner
Fold the tape in the corner area.
Remove the backing paper in the corner area and stick the tapes to one another.
Ensure that there is uninterrupted windtightness for the joint between the tapes.

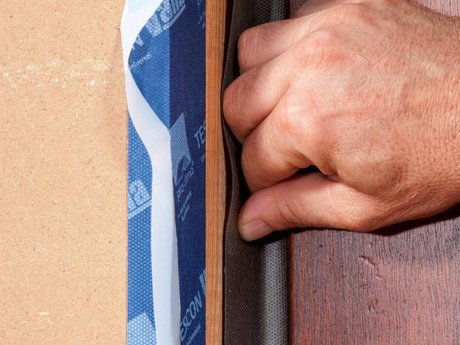

2. Stick to the soffit
Remove the strip of backing paper from the smooth membrane side and stick the tape all around the soffit in an airtight manner.

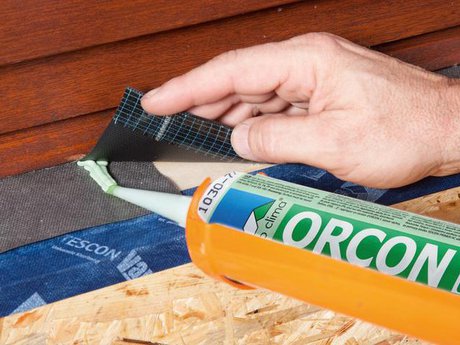

3. Stick the ends
Applyan approx. 5 mm thick line of ORCON F joint adhesive between the overlapping ends ofthe tape.
Place the tape onto the adhesive.
Do not press the adhesive completely flat so as to allow for relative motion between components.
