TESCON VANA patch
Installation steps

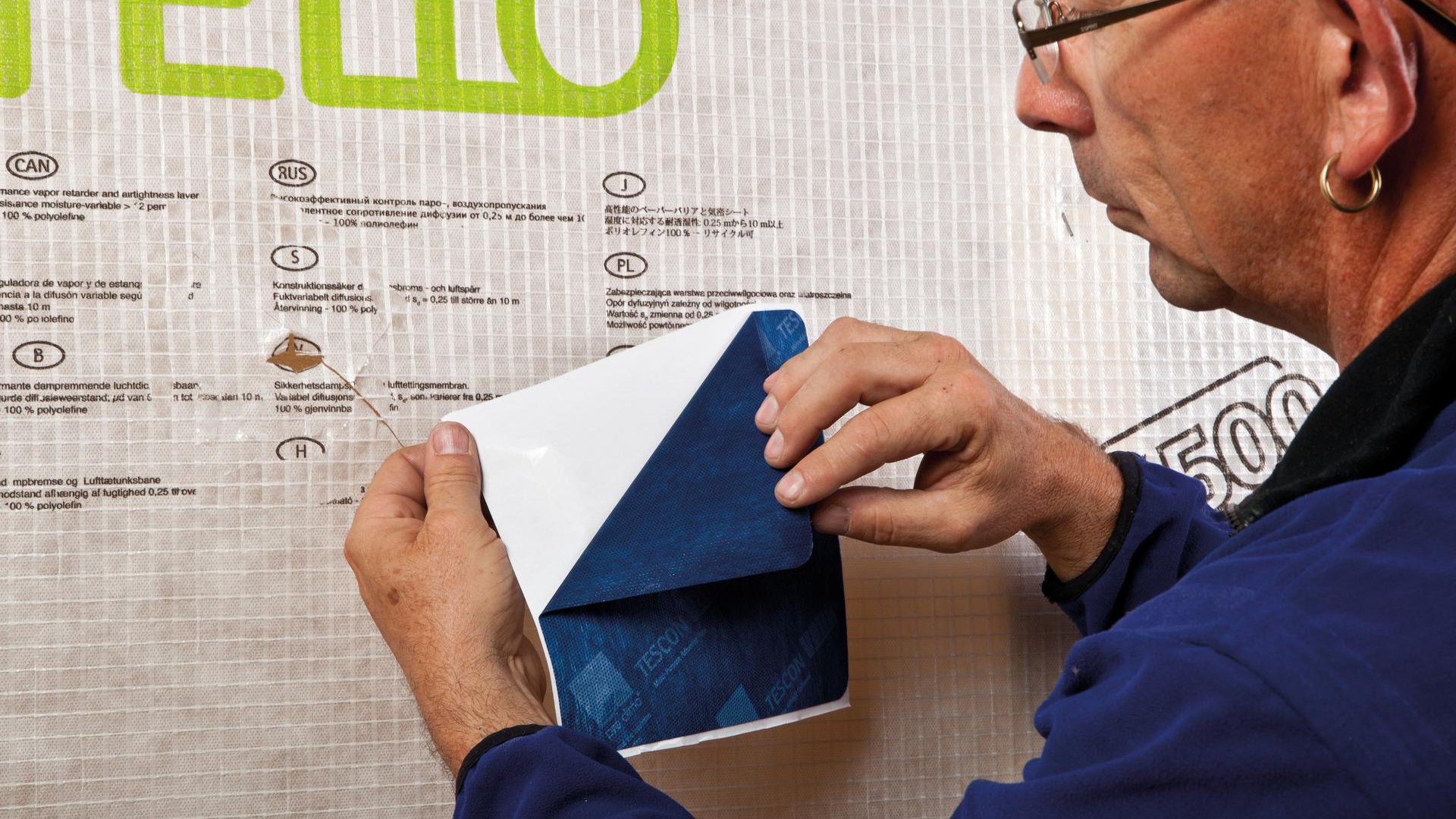

1. Remove the release paper
The release paper can be easily removed from the adhesive tape using the finger lift.
1. Remove the release paper
The release paper can be easily removed from the adhesive tape using the finger lift.

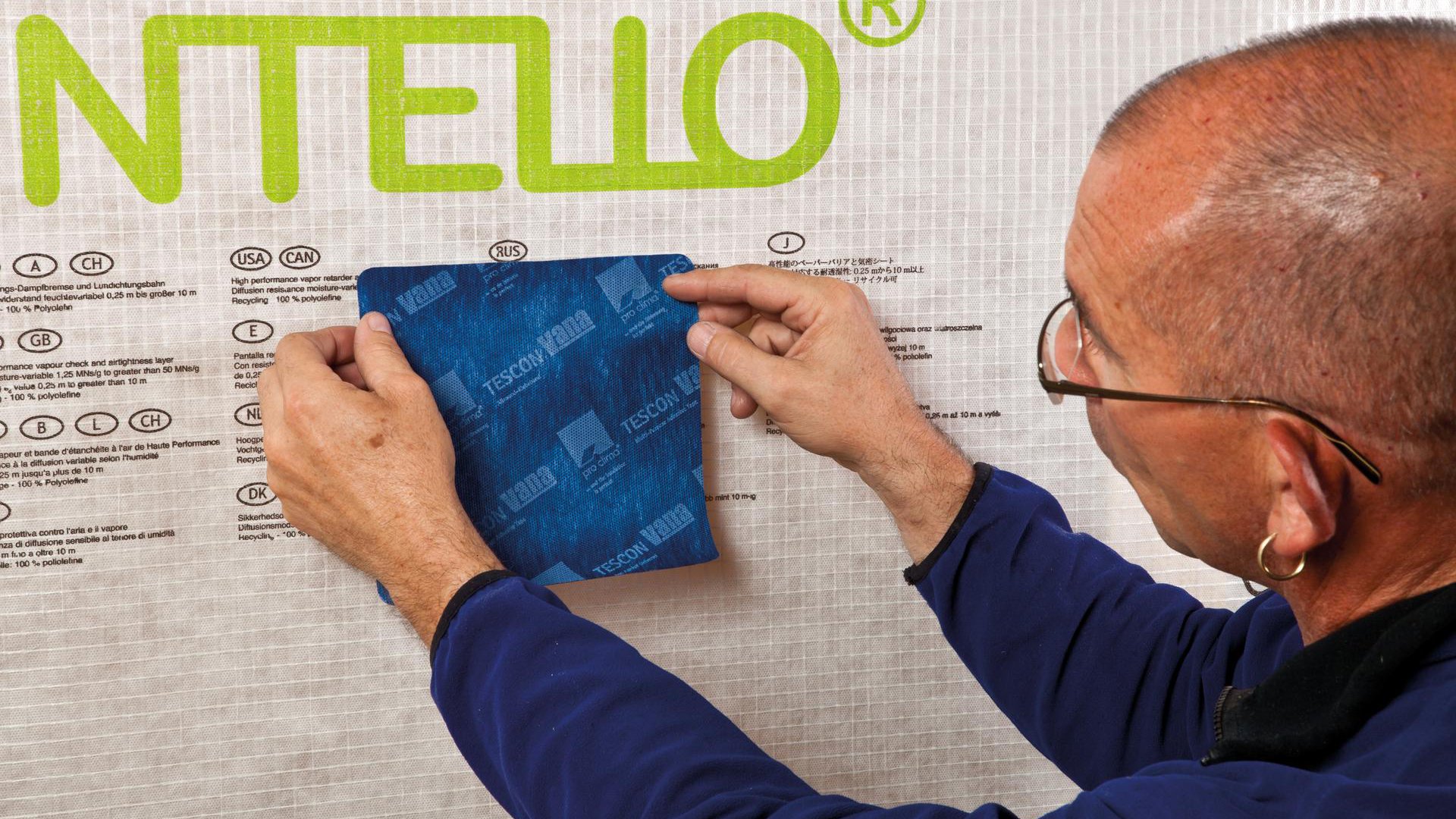

2. Stick in place
Position the patch in place with both hands.
Ensure that the patch is stuck to at least 2 cm (3/4") of intact subsurface all around.
Sealing must be carried out with no folds or creases.
2. Stick in place
Position the patch in place with both hands.
Ensure that the patch is stuck to at least 2 cm (3/4") of intact subsurface all around.
Sealing must be carried out with no folds or creases.

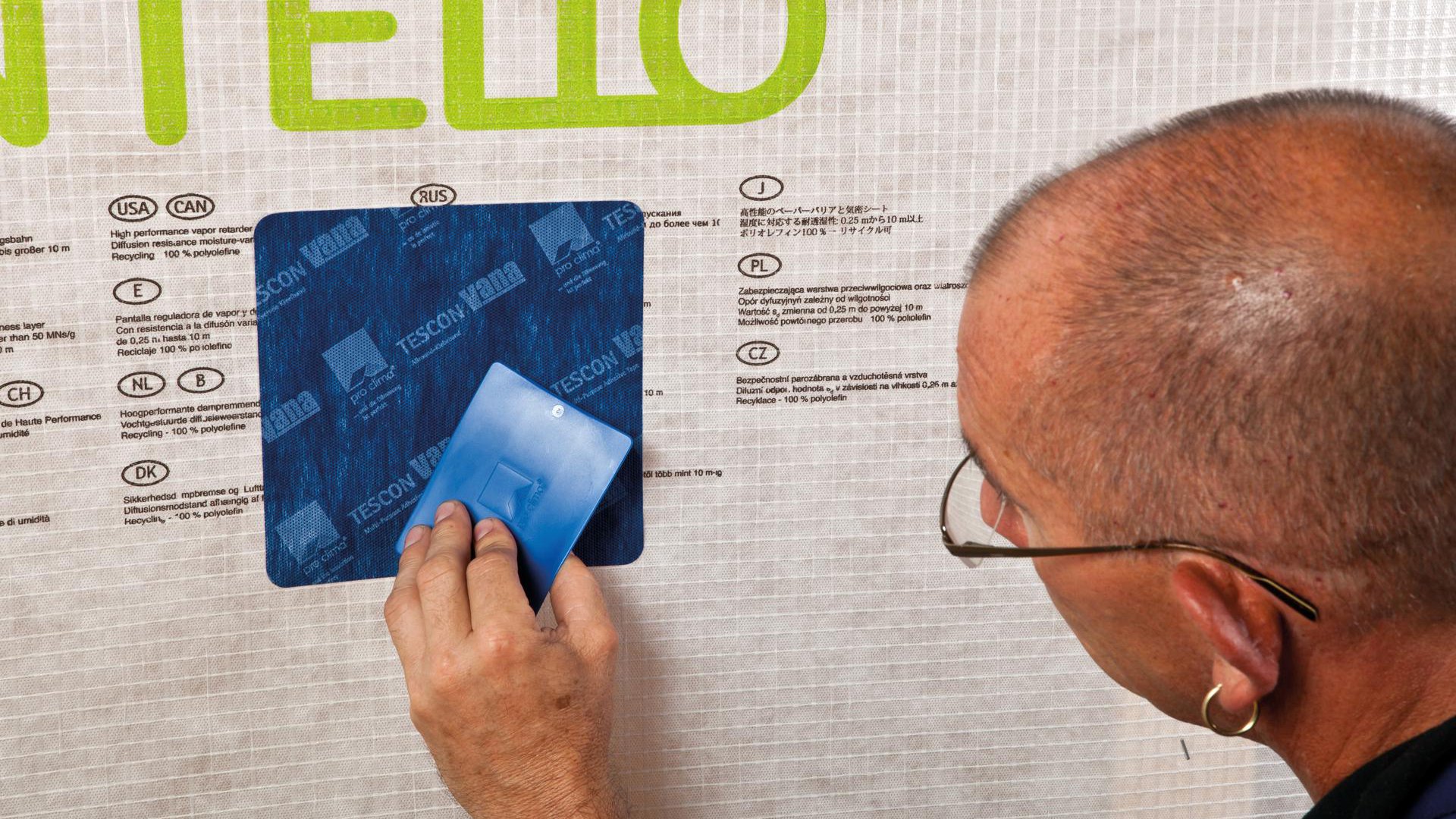

3. Rub to secure the adhesive bond
Carefully rub the TESCON VANA patch in place. The best results are achieved using the PRESSFIX application tool.
3. Rub to secure the adhesive bond
Carefully rub the TESCON VANA patch in place. The best results are achieved using the PRESSFIX application tool.
