TESCON NAIDECK mono patch
Single-sided nail-sealing patch
Advantages
- Very good sealing effect: sealing material is pulled into the hole created when a nail or screw is fitted
- Easy to pre-install on roofing underlays or battens
- Conforms to regulations: satisfies the requirements of the German ZVDH trade association and of the Swiss SIA 232/1 standard
- Material savings: patch is only stuck to the counter batten in the area around the nail/screw
- Provides protection during the construction period: suitable as a temporary covering
Areas of application
For use underneath counter battens on pitched roof constructions. TESCON NAIDECK mono patch is suitable for use in creating temporary coverings in accordance with the product data sheets of the Central Association of the German Roofing Trade (ZVDH) for roofing underlays membranes. 300 patches per roll.
Installation instructions
Installation steps
General conditions

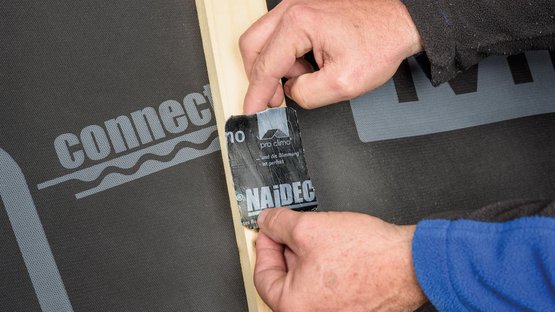

Perforation seals and water-resistant adhesive joints will only be effective on roofing underlay membranes that have been installed with no folds or creases. This patch can be stuck onto the counter batten or the substrate that is to be sealed. Rub the patch firmly to secure the adhesive bond.
Substrate
Clean subsurfaces before sticking. Adhesion to frozen surfaces is not possible. There must be no water-repellent substances (e.g. grease or silicone) on surfaces where adhesives are to be applied. Subsurfaces must be sufficiently dry and stable.
TESCON NAIDECK mono patch can be used on all pro clima exterior membranes, on other underlay and breather (WRB) membranes (e.g. those made of PP and PET) and with MDF panels and wood-fibre underlay panels.
The best results in terms of structural stability are achieved on level, unstructured subsurfaces. It is your responsibility to check the suitability of the subsurface; adhesion tests are recommended in certain cases. Pre-treatment with TESCON PRIMER is recommended in the case of subsurfaces with insufficient stability.
