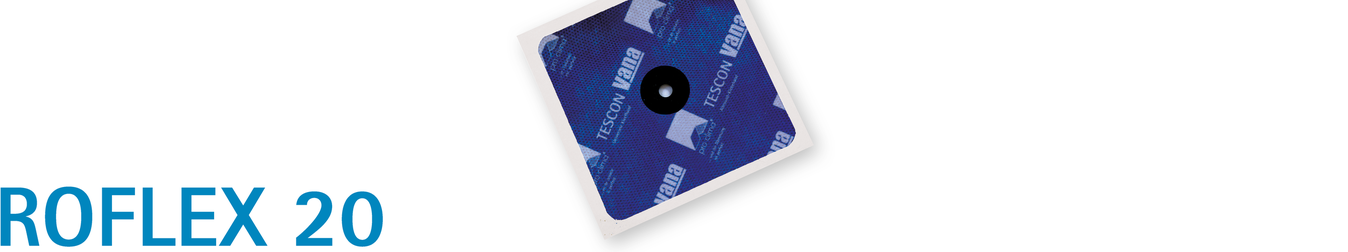

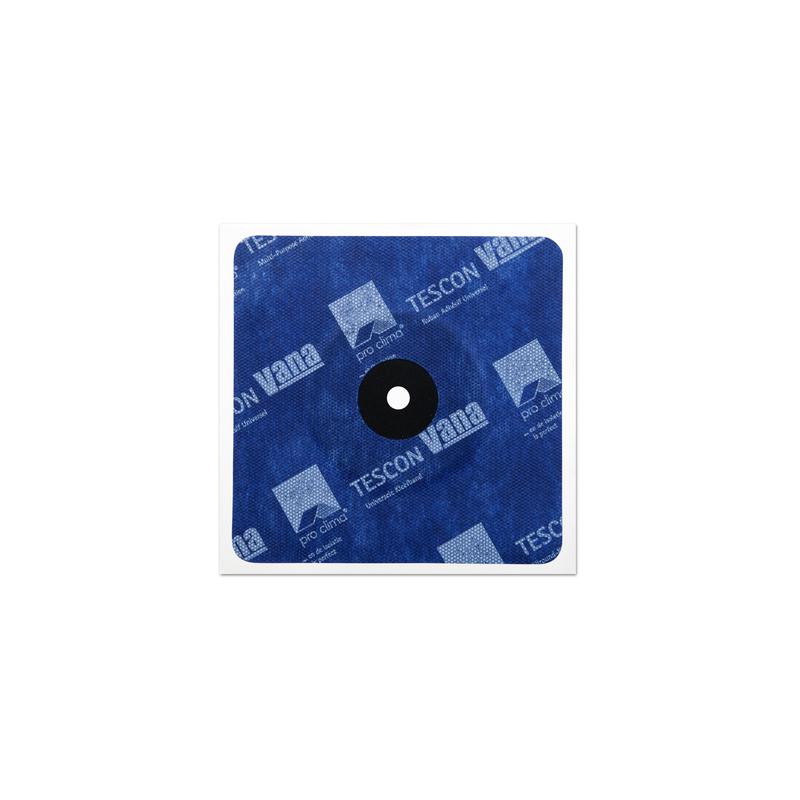

Sealing grommets for pipes Ø 15 - 30 mm (.5”-1.5”), for interior and exterior use



Advantages

  • Keeps building components dry: quick and simple sealing
  • Reliable joints thanks to waterproof SOLID adhesive
  • Practical handling: pipes can be pushed and pulled through the grommet – the joint remains sealed
  • Extremely flexible and elastic, no protruding sleeve
  • Subsequent work can be carried out more flexibly: 6 months of outdoor exposure
  • Construction in adherence with standards: for airtight bonding in accordance with DIN 4108-7, SIA 180 and RT 2012
  • Excellent values in the hazardous substance test, has been tested according to the ISO 16000 evaluation scheme


Areas of Application

For quick, permanently sealed feedthroughs of cables and pipes through the airtightness layer. Also for exterior use, e.g. for underlays or refurbishment vapour retarders.

Technical specs

  Material
Material TESCON VANA width EPDM
Adhesive waterproof SOLID adhesive
Release film siliconized paper
Attribute Value Norm
Colour dark blue / black
Exposure time 6 months
Bonding requirement, non-aged/aged passed DIN 4108-11
Can be plastered over yes
Application temperature above -10 °C ; 14 °F
Temperature resistance EPDM permanent -40 °C to 150 °C ; -40 °F to 302 °F
Storage cool and dry


Declaration of Performance
