SOLITEX QUANTHO 3000 connect
III. Rainproof sub-roof, e.g. over roof sheathing with nail-sealing tape, pitch ≥10° (2.1:12)

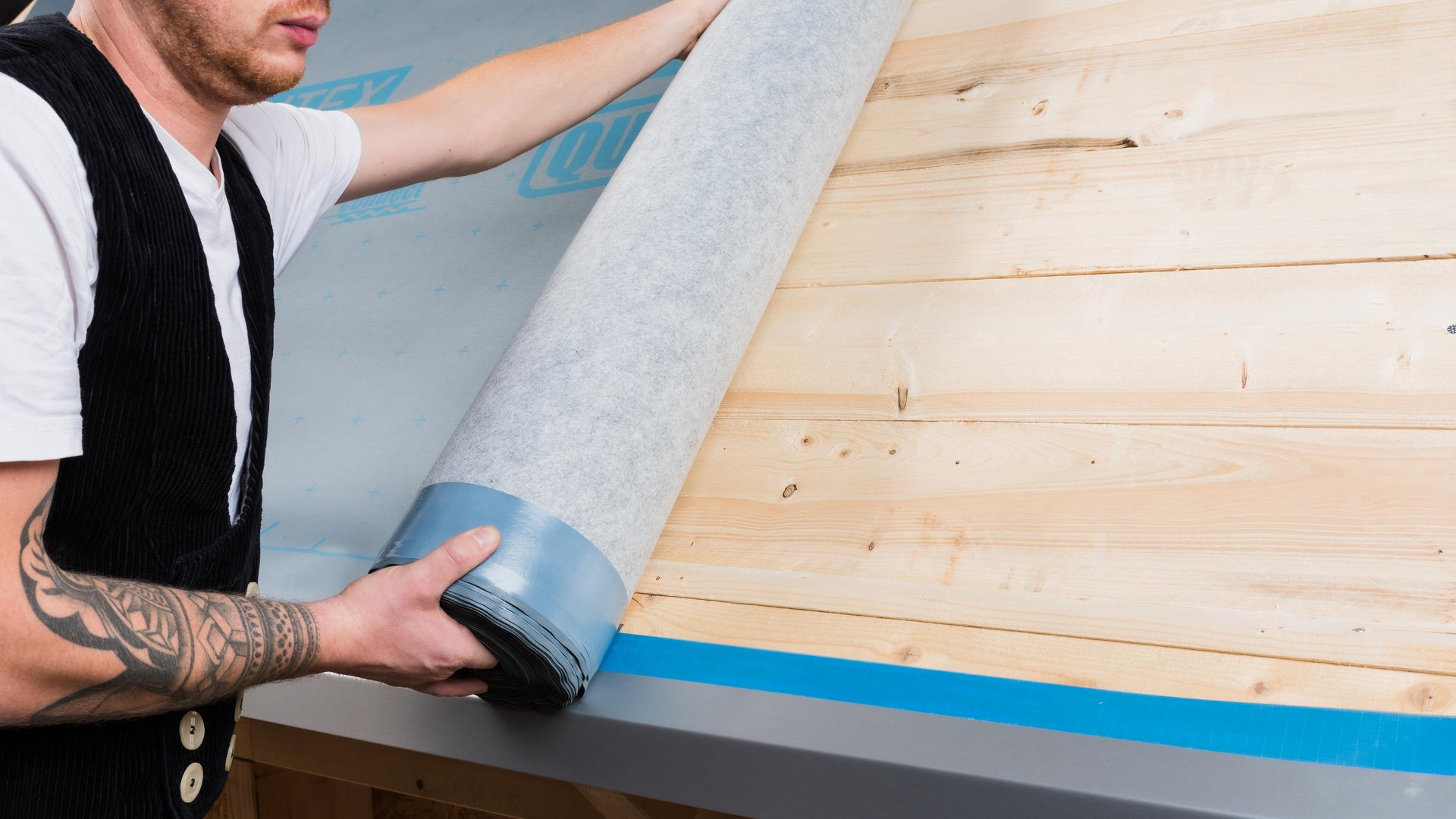

12. Installation of the membranes onto wood sheathing
Position the membrane on the eave flashing or eave strip and stick in place using the integrated ‘connect’ self-adhesive strip, double-sided DUPLEX adhesive tape or single-sided TESCON VANA system adhesive tape, ensuring that there are no folds or creases.
12. Installation of the membranes onto wood sheathing
Position the membrane on the eave flashing or eave strip and stick in place using the integrated ‘connect’ self-adhesive strip, double-sided DUPLEX adhesive tape or single-sided TESCON VANA system adhesive tape, ensuring that there are no folds or creases.

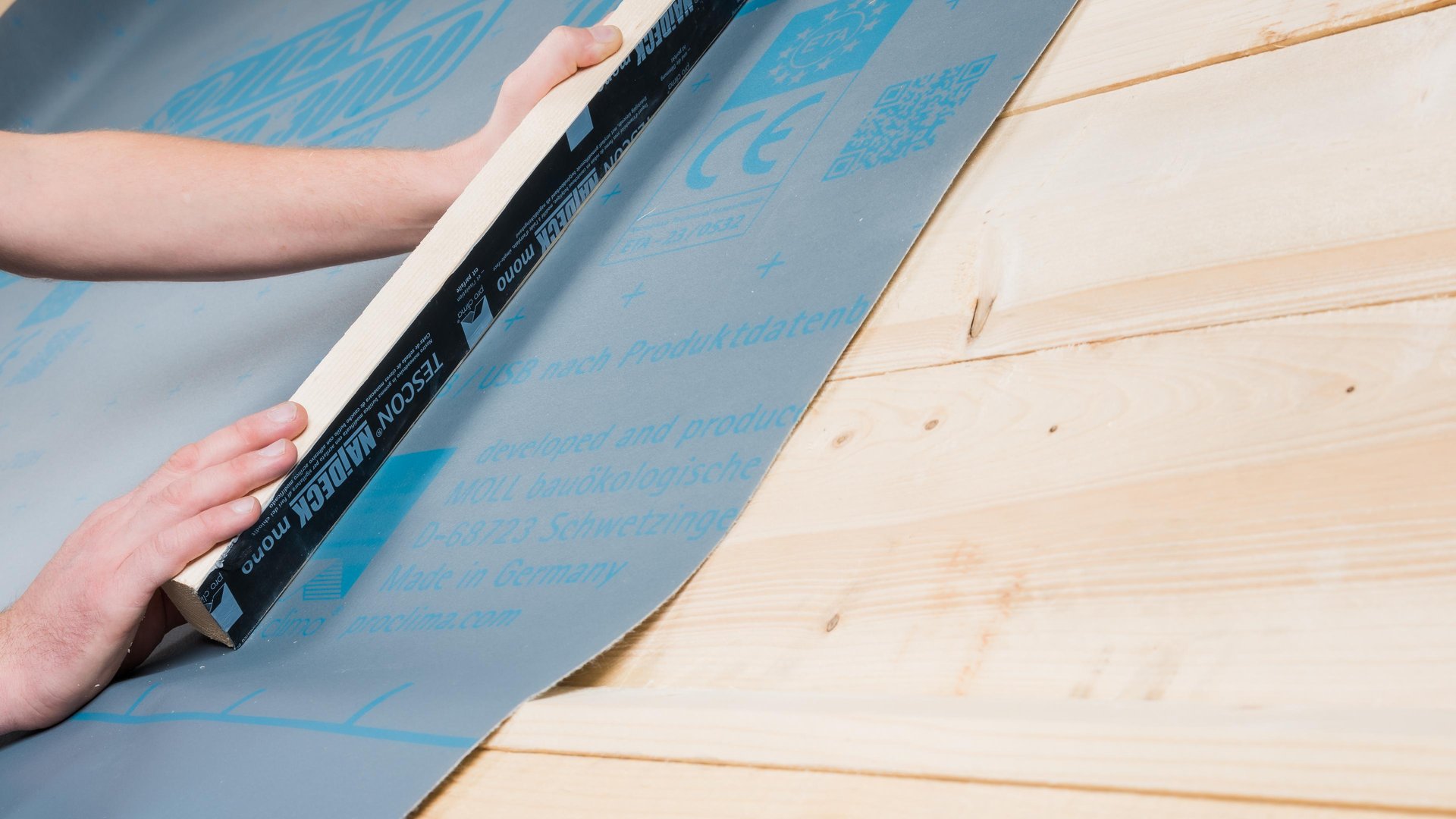

13. Nail sealing
If the membrane is used to create a rainproof sub-roof or in the case of installation onto roughly sawn roof sheathing, the TESCON NAIDECK mono nail-sealing tape must be installed between the counter battens and the membrane.
13. Nail sealing
If the membrane is used to create a rainproof sub-roof or in the case of installation onto roughly sawn roof sheathing, the TESCON NAIDECK mono nail-sealing tape must be installed between the counter battens and the membrane.
