Reinforced hydrosafe high-performance vapour retarder, suitable for all fibrous insulation materials
- The best possible protection for insulation structures thanks to humidity-variable diffusion adaptation with a variation of a factor of over 100
- Test winner in April 2012 with the German product-testing foundation »Stiftung Warentest«
- For construction in accordance with standards and laws, thanks to approval by the German DIBt
- Permanent protection: Officially tested and certified performance
- Protected winter building sites thanks to hydrosafe behaviour
- Very low coefficient of expansion when combined with spray insulation materials
- Lowest VOC rating in hazardous substance test
Can be used as a vapour check and airtightness membranes for all externally diffusion-open structures, e.g. with roof underlay (pro clima SOLITEX), softwood fibreboard or MDF board. For a high level of protection against moisture induced failures in structurally challanging constructions such as diffusion-resistant flat/pitched roofs. Also suitable in
extreme environments such as in high mountain regions. Further information is given in the study “Calculating potential freedom from structural damage of thermal insulation structures in timber-built and steel systems”.
|Reinforcement||Polypropylene non-woven fabric|
|Surface weight||EN 1849-2||110 ±15 g/m² ; 0.36 ±0.05 oz/ft²||EN 1849-2|
|Thickness||EN 1849-2||0.40 ±0.1 mm ; 16 ±4 mils||EN 1849-2|
|Water vapor resistance factor µ||EN 1931||18 750||EN 1931|
|sd-value||EN 1931||7.50 ±0.25 m||EN 1931|
|sd-value humidity variable||EN ISO 12572||0.25 - >25 m||EN ISO 12572|
|g-value||37.50 ±1.25 MN·s/g|
|g-value humidity variable||1.25 - >125 MN·s/g|
|Vapor permeance||ASTM E96-A||0.17 US perms||ASTM E96-A|
|Vapor permeance humidity variable||EN ISO 12572||< 0.13 - 13 US perms||EN ISO 12572|
|Hydrosafe value sd at 70% rel. humidity on avg.||DIN 68800-2||2.00 m||DIN 68800-2|
|Surface burning characteristics||ASTM E84||Class A (Flame Spread 0; Smoke development index 35)||ASTM E84|
|Reaction to fire||EN 13501-1||E||EN 13501-1|
|Tensile strength MD/CD||EN 13859-1||350 N/5 cm / 290 N/5 cm ; 40 lb/in / 33 lb/in||EN 13859-1|
|Elongation MD/CD||EN 13859-1||15 % / 15 %||EN 13859-1|
|Nail tear resistance MD/CD||EN 13859-1||200 N / 200 N ; 45 lbf / 45 lbf||EN 13859-1|
|Artificial ageing by long term||EN 1296 / EN 1931||passed||EN 1296 / EN 1931|
|Temperature resistance||-40 °C to 80 °C ; -40 °F to 176 °F|
|Thermal conductivity||0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)|
|Airtightness||ASTM E2178||≤ 0.004 cfm/ft²||ASTM E2178|
|Airtightness||EN 12114||tested||EN 12114|
|National technical approval (DE)||DIN 68800-2||Z-9.1-853||DIN 68800-2|
|CE labelling||EN 13984||available||EN 13984|

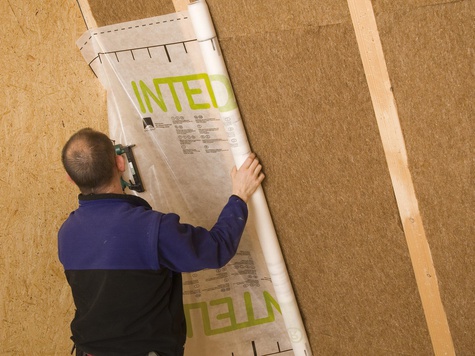

pro clima INTELLO PLUS should be laid with the side with the plastic film (the printed side) facing the installer. They can be laid flat either at right angles to or along the sub-structure (such as the rafters) without sagging. If laid horizontally (at right angles to the sub-structure) then the maximum space permitted between the rafters is 100 cm (3'3"). After laying, it is necessary to support the weight of the insulation with lathing on the inside. The laths should be no more than 50 cm (1'8") apart. If, when using insulation mats and boards, for example, you expect systematic tension as a result of the insulation weight on the adhesive tape joins, an additional supporting lath should be placed on the overlap. Alternatively, the adhesive tape can be reinforced along the overlap by sticking strips of adhesive tape at right angles to the overlap every 30 cm (12").
Airtight seals can only be achieved on vapour control membranes that have been laid without folds or creases. Ventilate regularly to prevent excessive humidity (e.g. during the construction phase). Occasional rush/inrush ventilation is not adequate to quickly evacuate large amounts of construction-related humidity from the building. Use a dryer if necessary.
To prevent condensation, INTELLO PLUS should be stuck down so that it is airtight immediately after installing the thermal insulation. This particularly applies when working in winter.
Additional instructions for blown-in insulation materials
INTELLO PLUS can also be used for blown-in insulation materials of all types. Its reinforcement structure ensures that there is little elongation during the blowing-in process.
Installing it parallel with the supporting structure has the advantage that the joint overlap will be over a solid structure and the taped joint will be supported by it. If installed perpendicular to structure, please make sure to support taped overlap with a batten or "stitch" tape this joint with perpendicular reinforcing TESCON strips every 30 cm (12").
Note: To avoid condensation formation in the structure during installation, the blown-in insulation material should be installed immediately after the completion of the airtightness layer. This applies particularly to work carried out in winter.
