5-ply wall lining membrane with double-layer, monotithic TEEE membrane, suitable for wall decking with gap widths of up to 50 mm, with 2 integrated self-adhesive sections



Advantages

  • Five-ply structure with double-layer, monolithic TEEE membrane
  • Optimal drying conditions for wall structures: the pore-free functional membrane actively transports moisture to the outside
  • Permeable and, at the same time, highly rainproof against driving rain

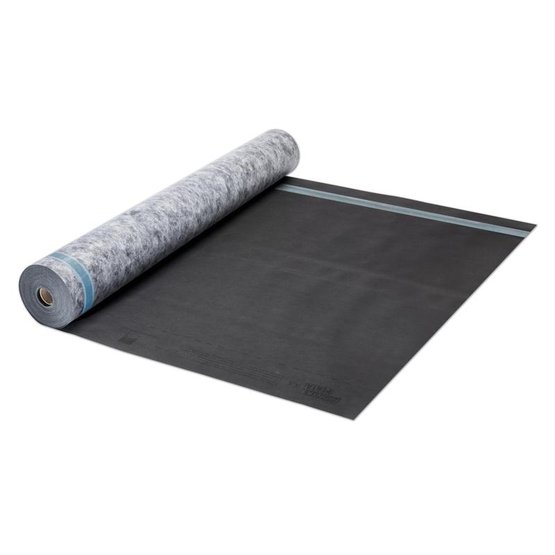

  • Black fleece with identification marking in the overlap area: not visible behind gap formwork
  • Extremely high tear-resistance, windproof, rainproof and waterproof
  • 6 months of natural weathering

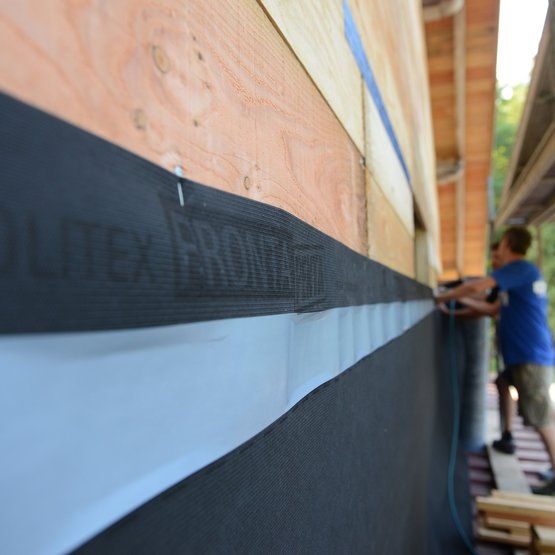

  • Quick and reliable adhesion as a result of integrated connect self-adhesive zones along the length of the membrane


Application

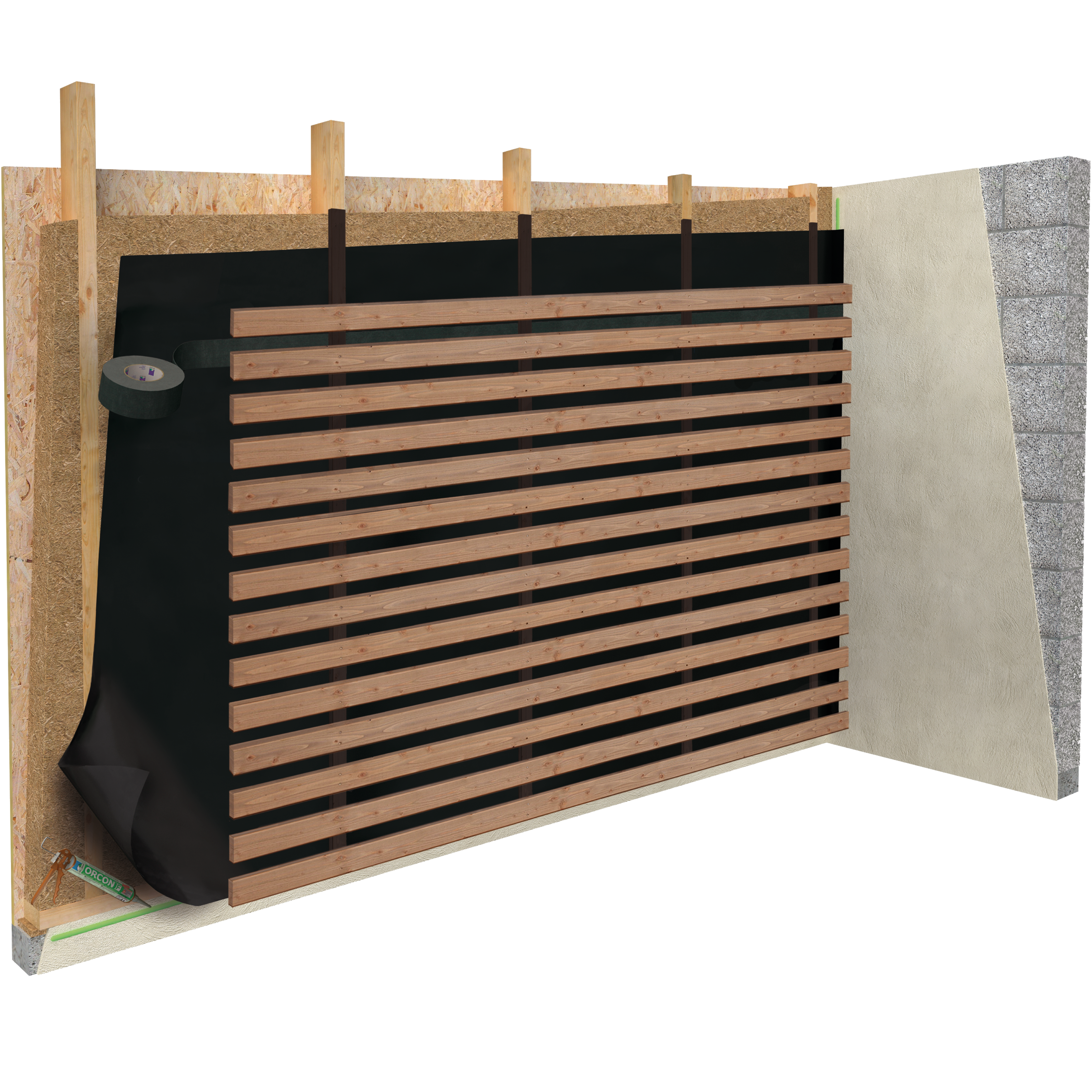

Permeable, 5-ply wall lining membrane with double-layer, monotithic TEEE membrane. For use behind closed and open facades (gap decking up to 50 mm (2")and 40% open total area).
Protects insulation material against wind and rain in a reliable, permanent manner.

Technical specs

  Material
Fleece Polypropylene microfibre
Membrane monolithic TEEE
Fleece Polypropylene microfibre
Membrane monolithic TEEE
Fleece Polypropylene microfibre
Attribute Value Norm
Colour black
Surface weight 280 ±15 g/m² ; 0.92 ±0.5 oz/ft² EN 1849-2
Thickness 1.1 ±0.2 mm ; 43 ±8 mils EN 1849-2
Water vapor resistance factor µ 185 EN ISO 12572
sd-value 0.2 ±0.05 m EN ISO 12572
g-value 1.0 ±0.25 MN·s/g
Vapour permeance 16.12 US perms ASTM E 96
Reaction to fire E EN 13501-1
Exposure time 6 months
Water column 10 000 mm ; 32' 10" EN 20811
Water tightness non-aged/aged* W1 / W1 EN 1928
Tensile strength MD/CD 440 ±35 N/5 cm / 440 ±35 N/5 cm ; 50 ±4 lb/in / 50 ±4 lb/in EN 13859-2 (A)
Tensile strength MD/CD aged* 365 ±35 N/5 cm / 365 ±35 N/5 cm ; 42 ±4 lb/in / 42 ±4 lb/in EN 13859-2 (A)
Elongation MD/CD 40 ±20 % / 40 ±20 % EN 13859-2 (A)
Elongation MD/CD aged* 28 ±10 % / 28 ±10 % EN 13859-2 (A)
Nail tear resistance MD/CD 375 ±35 N / 375 ±35 N ; 84 ±8 lbf / 84 ±8 lbf EN 13859-2 (B)
*) Artificial ageing by long term passed (for walls with open joints) EN 1297 / EN 1296
Flexibility at low temperature -40 °C ; -40 °F EN 1109
Temperature resistance permanent -40 °C to 100 °C ; -40 °F to 212 °F
Thermal conductivity 0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
CE labelling available EN 13859-2
