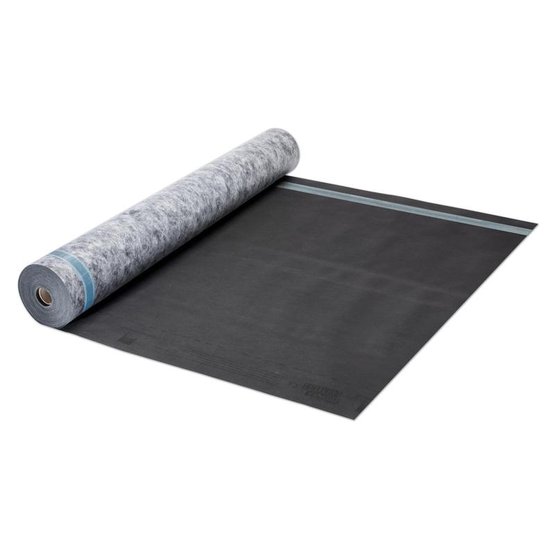

3-ply wall lining membrane with monolithic TEEE functional membrane, suitable for open jointed and closed façades, with 2 in­teg­rated self-ad­hes­ive sec­tions



Advantages

  • Highly diffusion-permeable, but with maximum resistance to driving rain
  • Optimum drying conditions for wall structures: non-porous TEEE functional membrane actively transports moisture outwards
  • Black fleece and black print prevent the membrane showing through open jointed façades
  • Maximum ageing resistance and thermal stability thanks to the TEEE membrane
  • 6 months of outdoor exposure

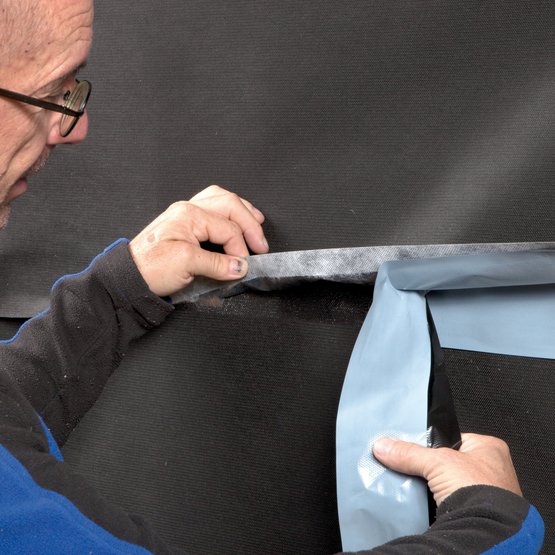

  • Quick and re­li­able ad­he­sion as a res­ult of in­teg­rated con­nect self-ad­hes­ive zones along the length of the mem­brane


Application

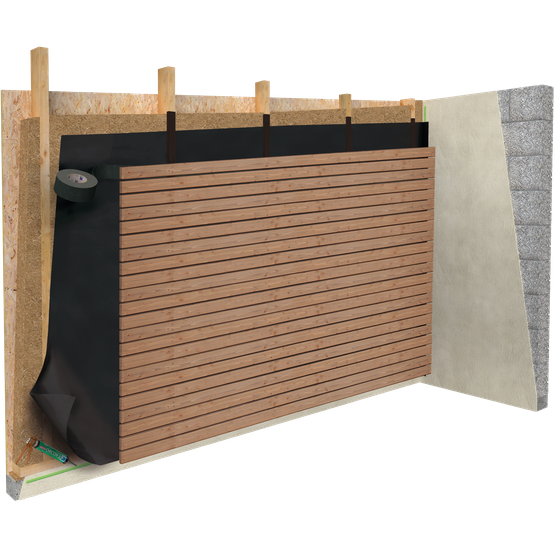

SOLITEX FRONTA QUATTRO connect permanently protects the insulation from wind and rain. For use with closed and open façades (open jointed façades, up to 35 mm (1 3/8") gap width - boarding width = min. 3 x gap width) in accordance with installation guidelines.

Technical specs / Forms of delivery

  Material
Protective and covering fleece Polypropylene microfibre
Membrane monolithic TEEE
Attribute Value Norm
Colour black
Surface weight 180 ±5 g/m² ; 0.59 ±0.02 oz/ft² EN 1849-2
Thickness 0.60 ±0.10 mm ; 24 ±4 mils EN 1849-2
Water vapor resistance factor µ 80 EN ISO 12572
sd-value 0.05 ±0.02 m EN ISO 12572
g-value 0.25 ±0.1 MN·s/g
Vapor permeance 65.6 US perms ASTM E 96
Reaction to fire E EN 13501-1
Exposure time 6 months
Water column 10 000 mm ; 32' 10" EN 20811
Water resistance non-aged/aged* W1 / W1 EN 1928
Tensile strength MD/CD 290 ±20 N/5 cm / 220 ±20 N/5 cm ; 33 ±2 lb/in / 25 ±2 lb/in EN 13859-2 (A)
Tensile strength MD/CD aged* 200 ±20 N/5 cm / 135 ±20 N/5 cm ; 23 ±2 lb/in / 15 ±2 lb/in EN 13859-2 (A)
Elongation MD/CD 50 ±20 % / 70 ±20 % EN 13859-2 (A)
Elongation MD/CD aged* 30 ±20 % / 40 ±20 % EN 13859-2 (A)
Nail tear resistance MD/CD 250 ±30 N / 240 ±30 N ; 56 ±7 lbf / 54 ±7 lbf EN 13859-2 (B)
*) Artificial ageing by long term passed (for walls with open joints) EN 1297 / EN 1296
Flexibility at low temperature -40 °C ; -40 °F EN 1109
Temperature resistance permanent -40 °C to 100 °C ; -40 °F to 212 °F
Thermal conductivity 0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
CE labelling available EN 13859-2

Forms of delivery

Art. no. GTIN Length Width Contents Weight Sales unit Container
1: Profi-VE nicht im Anbruch lieferbar

Installation instructions

General conditions

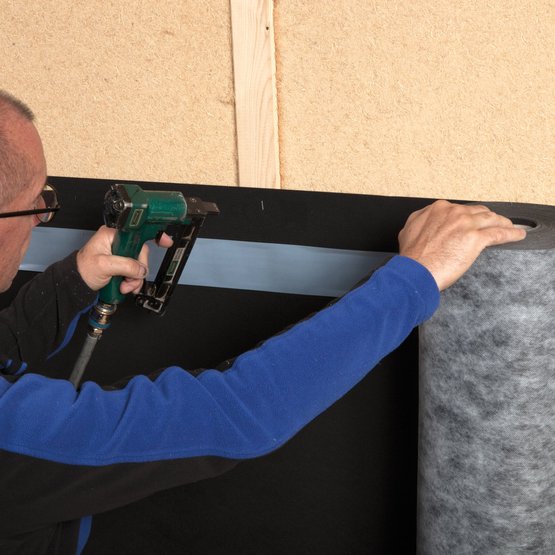

SOLITEX FRONTA QUATTRO membranes must be laid with the printed side facing outwards. The membranes are to be installed horizontally in a taut manner with no sagging.

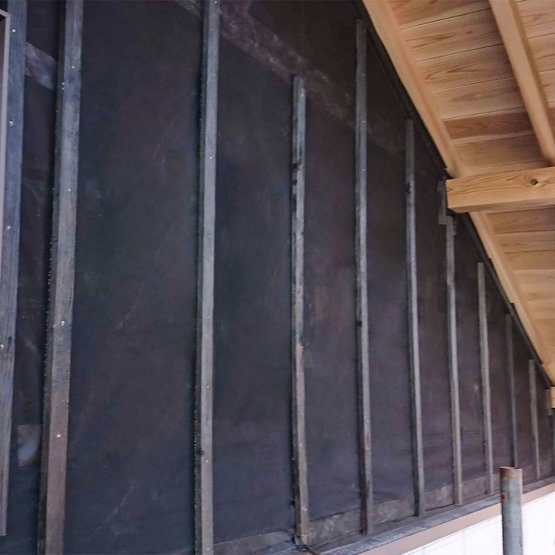

When using behind open jointed façades the gaps must not be more than 35 mm (1 3/8"). The width of the boarding: min. 3 x gap width.
The distance between the façade and the membrane must be at least 20 mm (1").

The membrane must not be secured in areas where water collectively drains off.

Additional measures during the building phase (e.g. covering with tarpaulin) should be taken in the case of occupied buildings or buildings that need particular protection. Covering with tarpaulin should also be considered in the case of extended interruptions to work.
