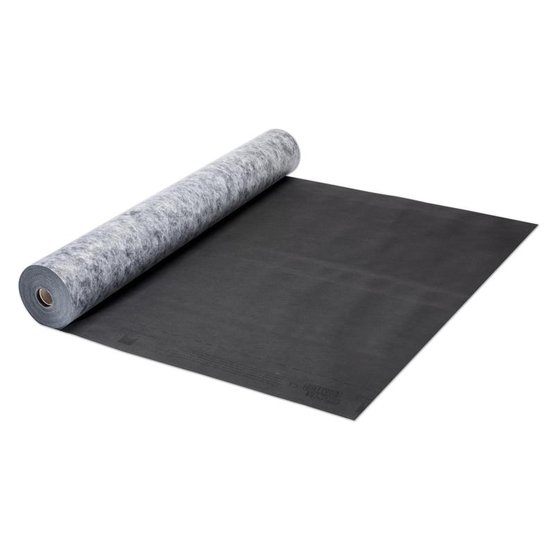

3-ply wall lin­ing mem­brane with mono­lith­ic TEEE func­tion­al mem­brane, suit­able for open join­ted and closed façades



Advantages

  • Highly dif­fu­sion-per­meable, but with max­im­um res­ist­ance to driv­ing rain
  • Op­tim­um dry­ing con­di­tions for wall struc­tures: non-por­ous TEEE func­tion­al mem­brane act­ively trans­ports mois­ture out­wards

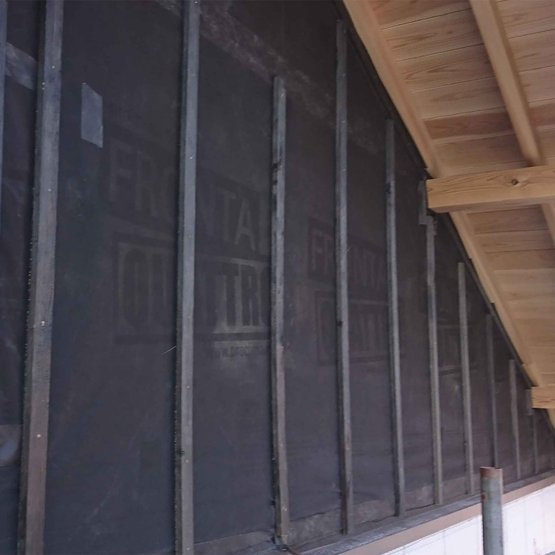

  • Black fleece and black print pre­vent the mem­brane show­ing through open join­ted façades
  • Max­im­um age­ing res­ist­ance and thermal sta­bil­ity thanks to the TEEE mem­brane
  • 6 months of out­door ex­pos­ure


Application

SOLI­TEX FRONTA QUAT­TRO per­man­ently pro­tects the in­su­la­tion from wind and rain. For use with closed and open façades (open join­ted façades, up to 35 mm (1 3/8") gap width – board­ing width = min. 3 x gap width) in ac­cord­ance with in­stall­a­tion guidelines.

  Material
Protective and covering fleece Polypropylene microfibre
Membrane monolithic TEEE
Attribute Value Norm
Colour black, Print: black
Surface weight 180 ±5 g/m² ; 0.59 ±0.02 oz/ft² EN 1849-2
Thickness 0.60 ±0.10 mm ; 24 ±4 mils EN 1849-2
Water vapor resistance factor µ 80 EN ISO 12572
sd-value 0.05 ±0.02 m EN ISO 12572
g-value 0.25 ±0.1 MN·s/g
Vapor permeance 65.6 US perms ASTM E 96
Reaction to fire E EN 13501-1
Exposure time 6 months
Water column 10 000 mm ; 32' 10" EN 20811
Water resistance un-/aged* W1 / W1 EN 1928
Tensile strength MD/CD 290 ±20 N/5 cm / 220 ±20 N/5 cm ; 33 ±2 lb/in / 25 ±2 lb/in EN 12311-1
Tensile strength MD/CD aged* 200 ±20 N/5 cm / 135 ±20 N/5 cm ; 23 ±2 lb/in / 15 ±2 lb/in EN 12311-1
Elongation MD/CD 50 ±20 % / 70 ±20 % EN 12311-1
Elongation MD/CD aged* 30 ±20 % / 40 ±20 % EN 12311-1
Nail tear resistance MD/CD 250 ±30 N / 240 ±30 N ; 56 ±7 lbf / 54 ±7 lbf EN 12310-1
*) Artificial ageing by long term passed (for walls with open joints) EN 1297 / EN 1296
Flexibility at low temperature -40 °C ; -40 °F EN 1109
Temperature resistance -40 °C to +100 °C ; -40 °F to 212 °F
Thermal conductivity 0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
CE labelling available EN 13859-2

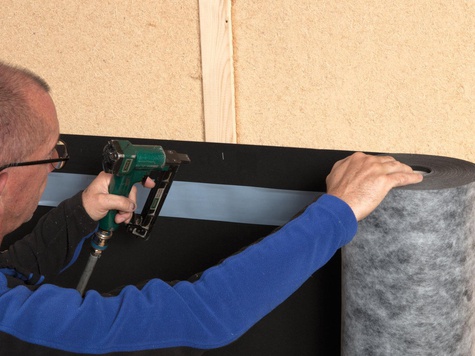

SOLITEX FRONTA QUATTRO membranes must be laid with the printed side facing outwards. The membranes are to be installed horizontally in a taut manner with no sagging.

When using behind open jointed façades the gaps must not be more than 35 mm (1 3/8"). The width of the boarding: min. 3 x gap width.
The distance between the façade and the membrane must be at least 20 mm (1").

The membrane must not be secured in areas where water collectively drains off.

Additional measures during the building phase (e.g. covering with tarpaulin) should be taken in the case of occupied buildings or buildings that need particular protection. Covering with tarpaulin should also be considered in the case of extended interruptions to work.

Bonding agents

Ad­hes­ive Tapes
TESCON IN­VIS
TESCON VANA

Joint ad­hes­ives
OR­CON F
