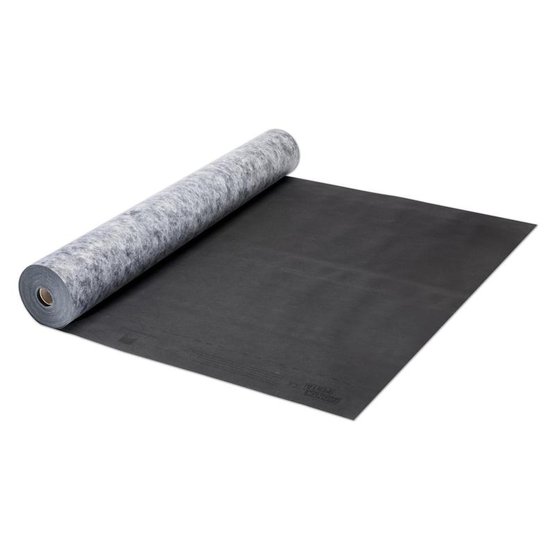

5-ply wall lining membrane with double-layer, monotithic TEEE membrane, suitable for wall decking with gap widths of up to 50 mm



Advantages

  • Five-ply structure with double-layer, monolithic TEEE membrane
  • Optimal drying conditions for wall structures: the pore-free functional membrane actively transports moisture to the outside
  • Permeable and, at the same time, highly rainproof against driving rain
  • Black fleece with identification marking in the overlap area: not visible behind gap formwork
  • Extremely high tear-resistance, windproof, rainproof and waterproof
  • 6 months of natural weathering


Application

Permeable, 5-ply wall lining membrane with double-layer, monotithic TEEE membrane. For use behind closed and open facades (gap decking up to 50 mm (2") and 40% open total area).
Protects insulation material against wind and rain in a reliable, permanent manner.

Technical specs

  Material
Fleece Polypropylene microfibre
Membrane monolithic TEEE
Fleece Polypropylene microfibre
Membrane monolithic TEEE
Fleece Polypropylene microfibre
Attribute Value Norm
Colour black
Surface weight 280 ±15 g/m² ; 0.92 ±0.5 oz/ft² EN 1849-2
Thickness 1.1 ±0.2 mm ; 43 ±8 mils EN 1849-2
Water vapor resistance factor µ 185 EN ISO 12572
sd-value 0.2 ±0.05 m EN ISO 12572
g-value 1.0 ±0.25 MN·s/g
Vapor permeance 16.12 US perms ASTM E 96
Reaction to fire E EN 13501-1
Exposure time 6 months
Water column 10 000 mm ; 32' 10" EN 20811
Water tightness non-aged/aged* W1 / W1 EN 1928
Tensile strength MD/CD 440 ±35 N/5 cm / 440 ±35 N/5 cm ; 50 ±4 lb/in / 50 ±4 lb/in EN 13859-2 (A)
Tensile strength MD/CD aged* 365 ±35 N/5 cm / 365 ±35 N/5 cm ; 42 ±4 lb/in / 42 ±4 lb/in EN 13859-2 (A)
Elongation MD/CD 40 ±20 % / 40 ±20 % EN 13859-2 (A)
Elongation MD/CD aged* 28 ±10 % / 28 ±10 % EN 13859-2 (A)
Nail tear resistance MD/CD 375 ±35 N / 375 ±35 N ; 84 ±8 lbf / 84 ±8 lbf EN 13859-2 (B)
*) Artificial ageing by long term passed (for walls with open joints) EN 1297 / EN 1296
Flexibility at low temperature -40 °C ; -40 °F EN 1109
Temperature resistance permanent -40 °C to 100 °C ; -40 °F to 212 °F
Thermal conductivity 0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
CE labelling available EN 13859-2

Image gallery - Application guide

General conditions

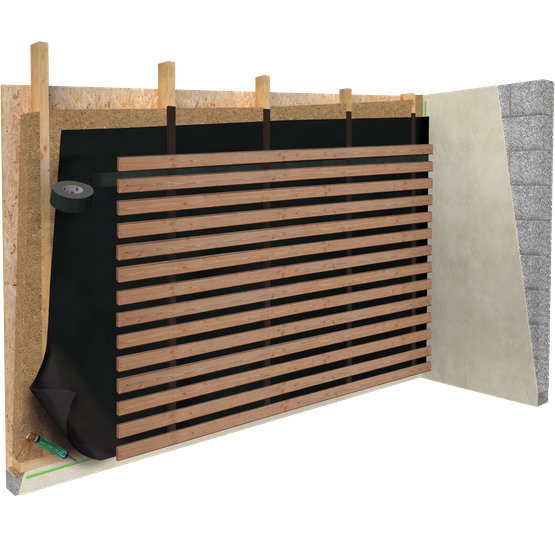

SOLITEX FRONTA PENTA membranes must be installed with the printed side facing outwards. The membranes are to be installed horizontally in a taut manner with no sagging.

When used behind gap decking, the gap may be a maximum of 50 mm at a maximum of 40% open total area.
The distance between the gap decking and the membrane must be at least 20 mm.

Fasteners should not be applied in areas where water run-off is collected.

Additional measures (e.g. covering with tarpaulins) should be taken during the construction phase in the case of buildings that are lived in or buildings that are to be given particular protection. Covering with tarpaulins should also be considered if construction work is to be interrupted for a longer period.
