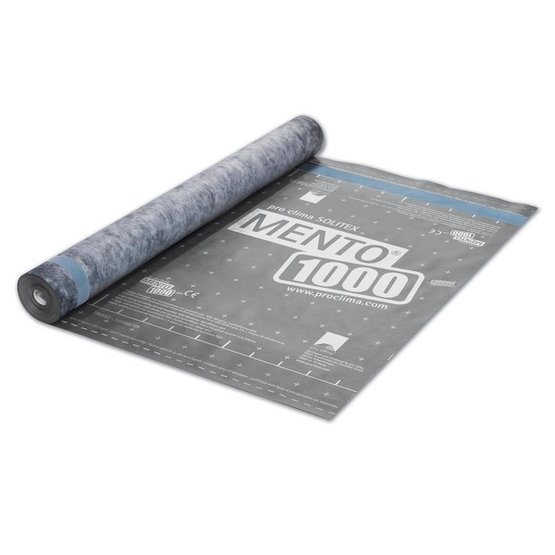

3-ply sark­ing and roof lin­ing mem­brane, light sheet­ing with mono­lith­ic TEEE func­tion­al mem­brane, with 2 in­teg­rated self-ad­hes­ive sec­tions



Advantages

  • Highly per­meable and at the same time, max­im­um res­ist­ance to driv­ing rain, wa­ter column 10 000 mm; 32' 10"
  • Op­tim­um dry­ing con­di­tions for roof struc­tures: non-por­ous TEEE func­tion­al mem­brane act­ively trans­ports mois­ture out­wards
  • Max­im­um age­ing res­ist­ance and thermal sta­bil­ity thanks to the TEEE mem­brane
  • 3 months of out­door ex­pos­ure. Suit­able for tem­por­ary roof cov­er­ings as spe­cified in the ZVDH product data sheet
  • Quick and re­li­able ad­he­sion as a res­ult of in­teg­rated con­nect self-ad­hes­ive zones along the length of the mem­brane


Application

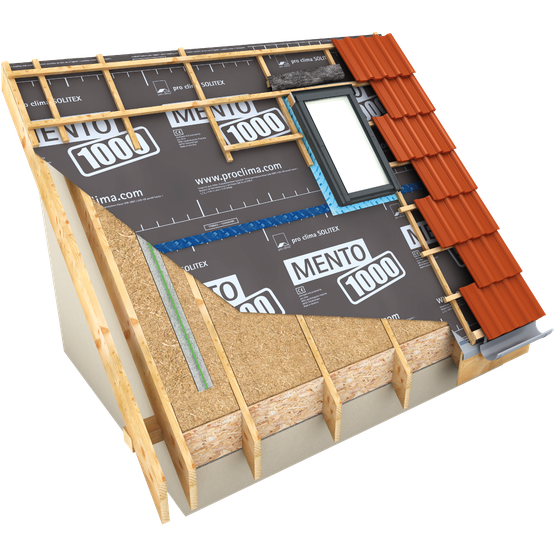

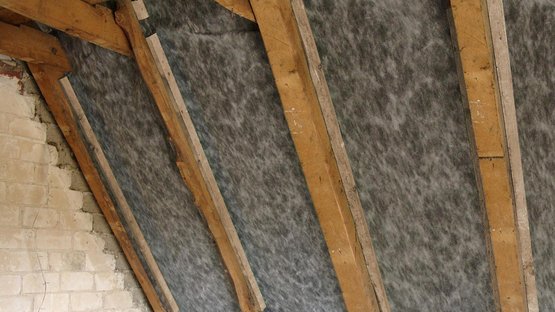

3-ply highly per­meable roof lin­ing and sark­ing mem­brane which is suit­able for lay­ing on board­ing, MDF and fibre­board roof lin­ing pan­els and in­su­lat­ing mats and boards.

  Material
Protective and covering fleece Polypropylene microfibre
Membrane monolithic TEEE
Attribute Value Norm
Colour anthracite
Surface weight 115 ±5 g/m² ; 0.38 ±0.02 oz/ft² EN 1849-2
Thickness 0.40 mm ±0.05 mm ; 16 ±2 mils EN 1849-2
Water vapor resistance factor µ 125 EN ISO 12572
sd-value 0.05 ±0.02 m EN ISO 12572
g-value 0.25 ±0.1 MN·s/g
Vapor permeance 65.6 US perms ASTM E96
Surface burning characteristics Class A (Flame Spread 0; Smoke Developed 85) ASTM E96
Reaction to fire E EN 13501-1
Exposure time 3 months
Water column 10 000 mm ; 32' 10" EN 20811
Water resistance un-/aged* W1 / W1 EN 1928
Tensile strength MD/CD 220 ±15 N/5 cm / 185 ±15 N/5 cm ; 25 ±3.5 lb/in / 21 ±3.5 lb/in EN 12311-2
Tensile strength MD/CD aged* 185 ±15 N/5 cm / 160 ±15 N/5 cm ; 21 ±3.5 lb/in / 18 ±3.5 lb/in EN 12311-2
Elongation MD/CD 60 ±20 % / 70 ±20 % EN 12311-1
Elongation MD/CD aged* 40 ±20 % / 50 ±20 % EN 12311-1
Nail tear resistance MD/CD 130 ±30 N / 135 ±30 N ; 29 ±7 lbf / 30 ±7 lbf EN 12310-1
*) Artificial ageing by long term passed EN 1297 / EN 1296
Flexibility at low temperature -40 °C ; -40 °F EN 1109
Temperature resistance -40 °C to 100 °C ; -40 °F to 212 °F
Thermal conductivity 0.17 W/(m·K) ; 1.18 BTU·in/(h·ft²·F)
Sarking membrane/roof lining membrane USB-A / UDB-B ZVDH-Produktdatenblatt
Temporary roof covering; suitable as ... yes ZVDH
CE labelling available EN 13859-1

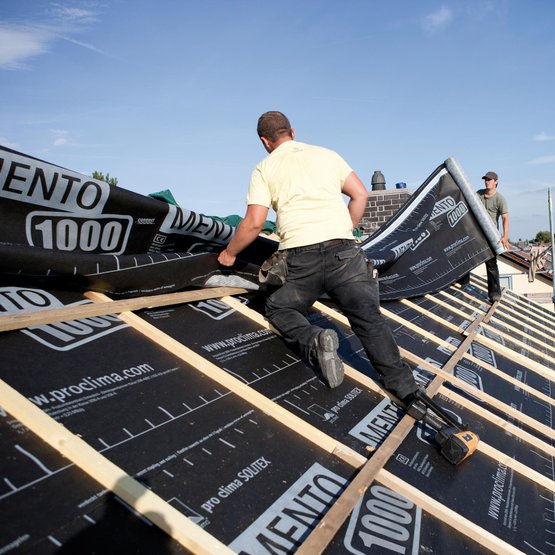

SOLITEX MENTO membranes should be laid with the printed side facing the installer. The membranes are to be installed as an underlay or sarking membrane horizontally (parallel to the eave) in a taut manner with no sagging. When using as a sarking membrane the spacing between the rafters is restricted to 100 cm (3' 3").

The membrane must not be secured in areas where water collectively drains off (e.g. in grooves).

In the case of uninsulated, undeveloped attic floors, ridge ventilation should be provided. For this purpose, the SOLITEX membrane should finish 5 cm (2") before the ridge. In addition, the undeveloped attic floor should be provided with permanent ventilation devices.

To protect the structure during the building phase, as specified by ZVDH ('Zen­t­ral­verb­and des Deutschen Dachdeck­er­handwerks' - Na­tion­al As­so­ci­ation of the Ger­man Roof­ing Trade), SOLITEX MENTO 1000 roof lining and sarking membrane can be used as a temporary roof cover for up to 3 months. In this case the roof pitch must be at least 14°. The system components TESCON NAIDECK nail sealing tape, ORCON F joint adhesive and TESCON VANA for sticking overlaps or joints must be used. The connect version has two self-adhesive zones for secure exterior sealing. The standards and guidelines of the German roofing trade association must be observed during installation and sealing.

According to the technical regulations of the roofing trade association, they are suitable as a sarking membrane for covering a tiled roof with simple overlapping as an additional protective measure against rain. When using as a roof lining membrane with simple overlapping on a timber shell, the SOLITEX MENTO membranes are also suitable at elevated requirements as an additional protective measure against rain.

Bonding agents

Ad­hes­ive Tapes
TESCON VANA

Joint ad­hes­ives
OR­CON F

Declaration of performance
